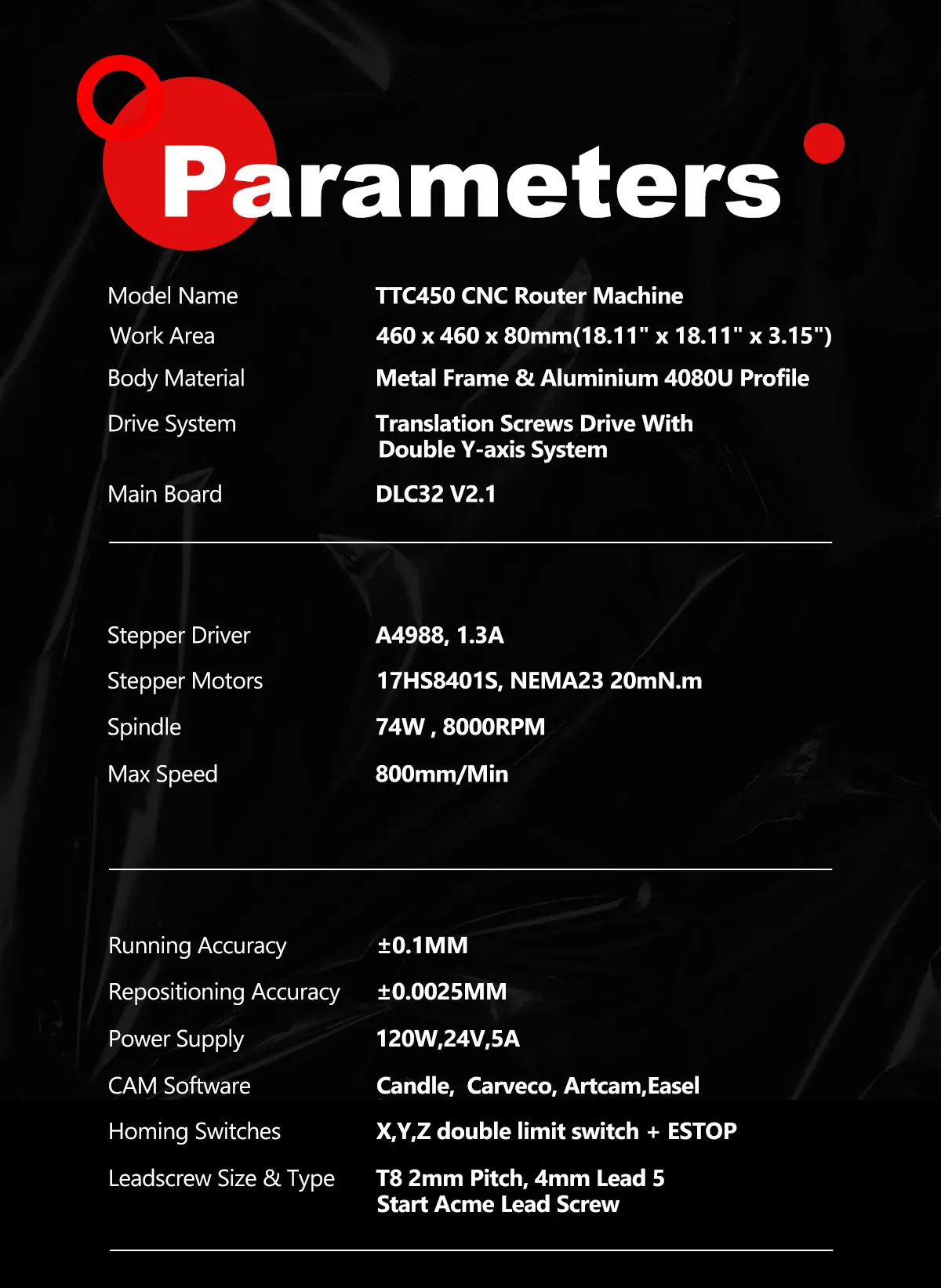

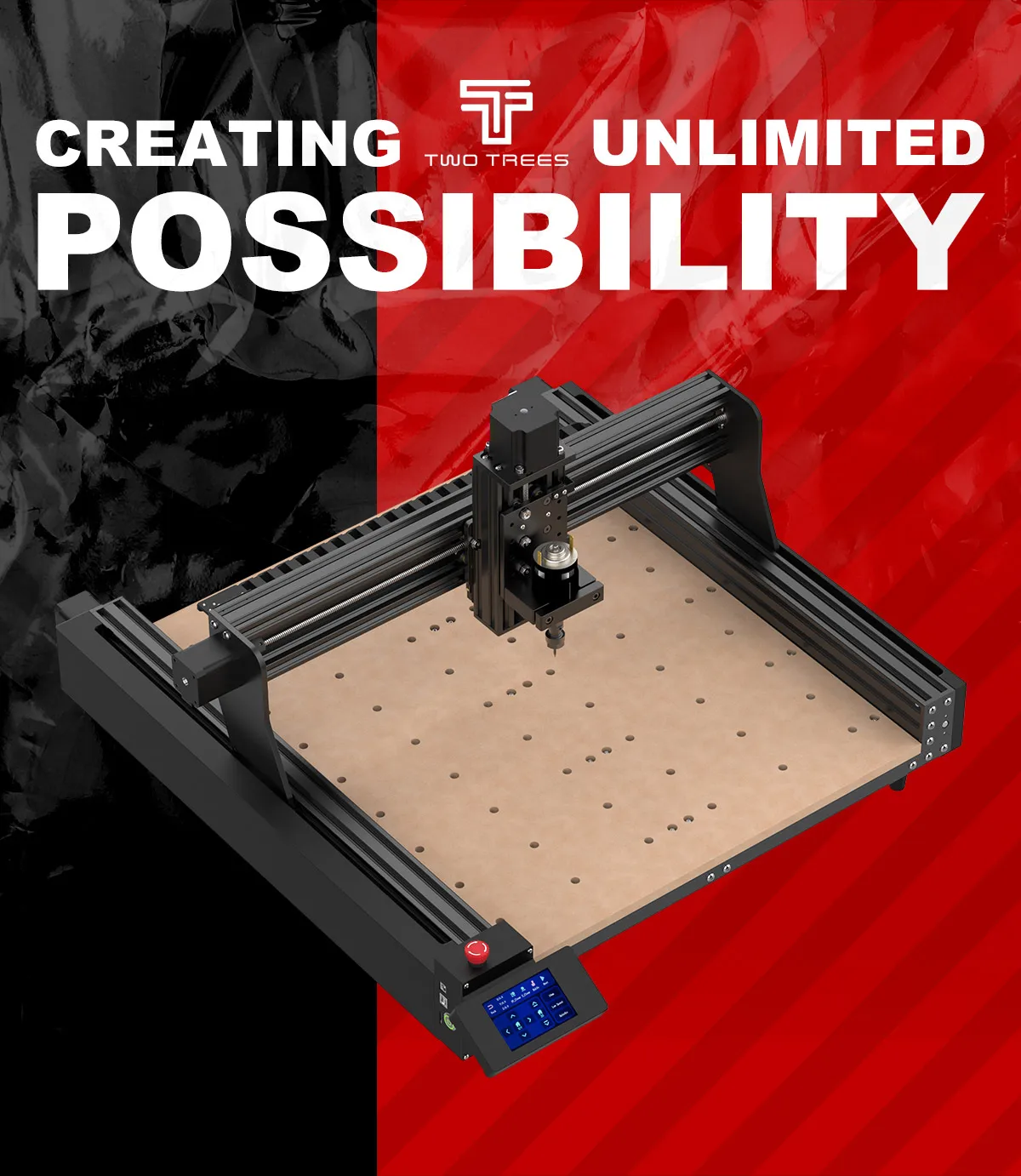

Brand： Twotrees

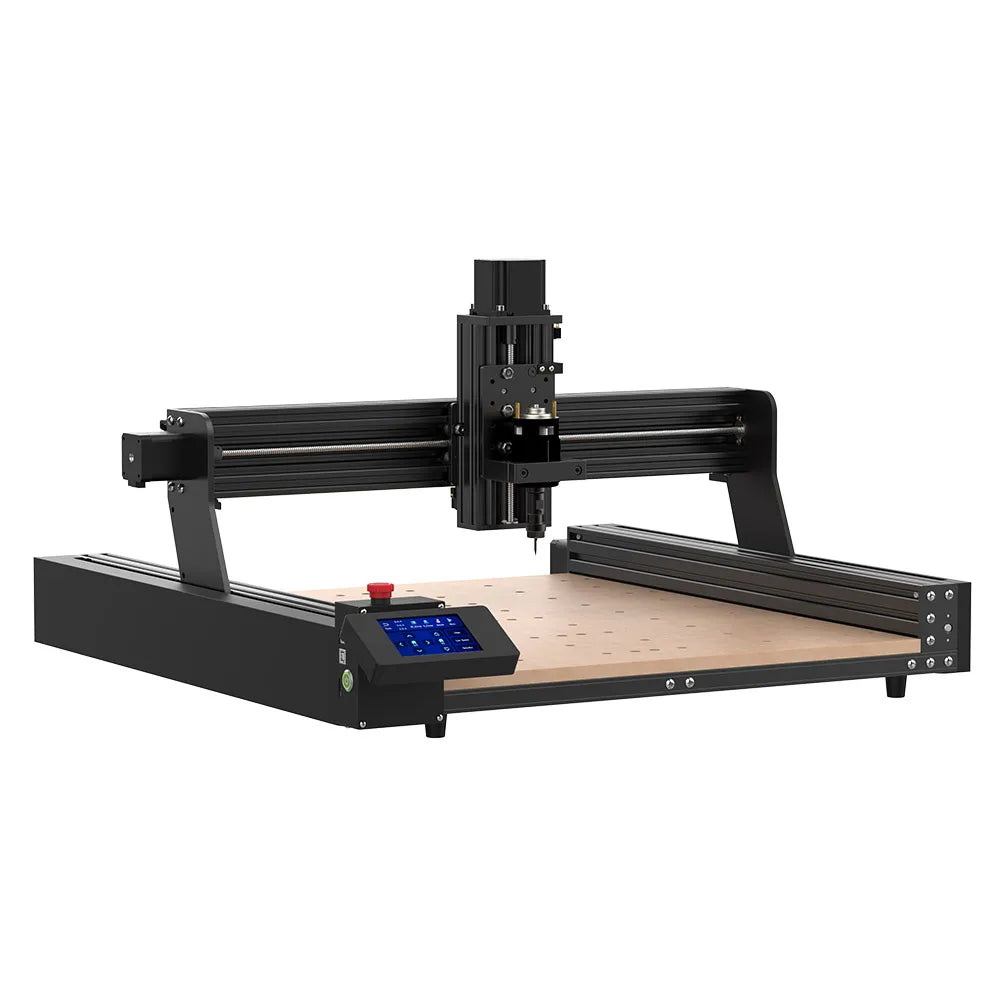

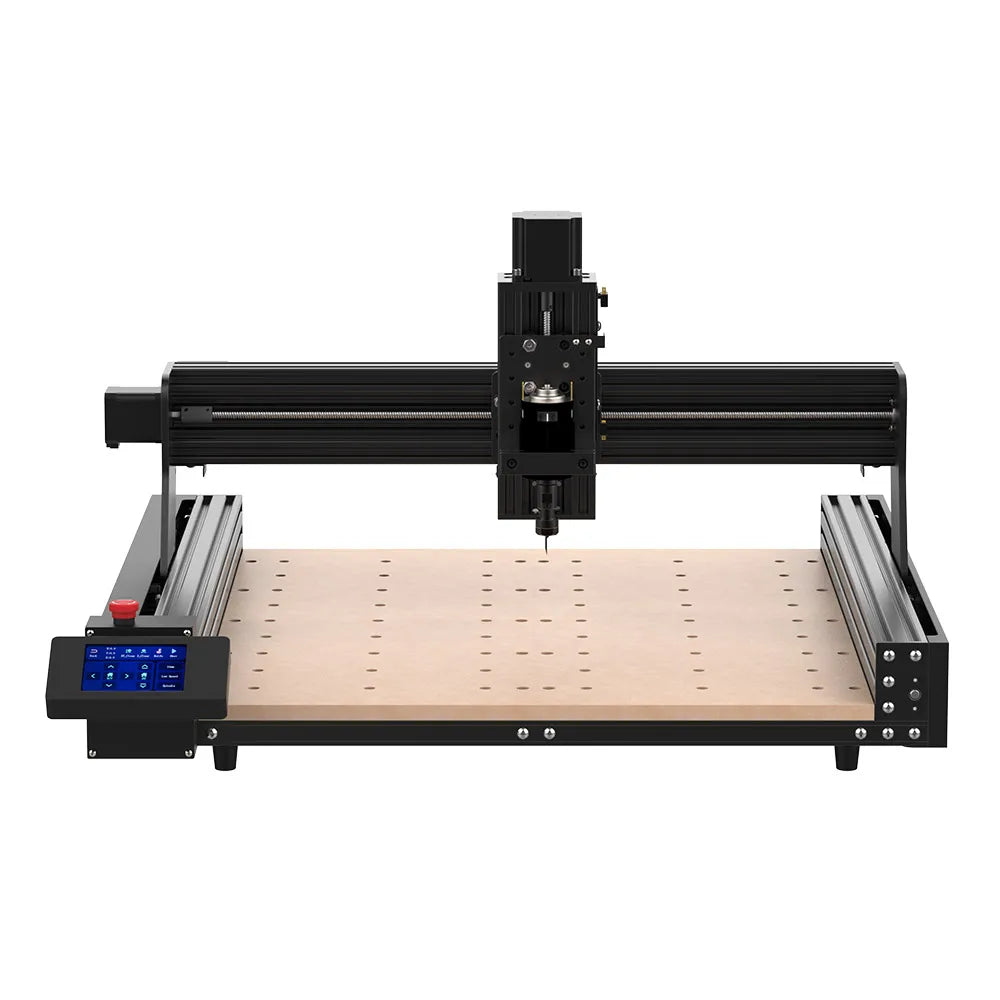

Model： TTC-450

Engraving area: 460mmX460mmX80mm

Power adapter power：80W, 5A, 24V

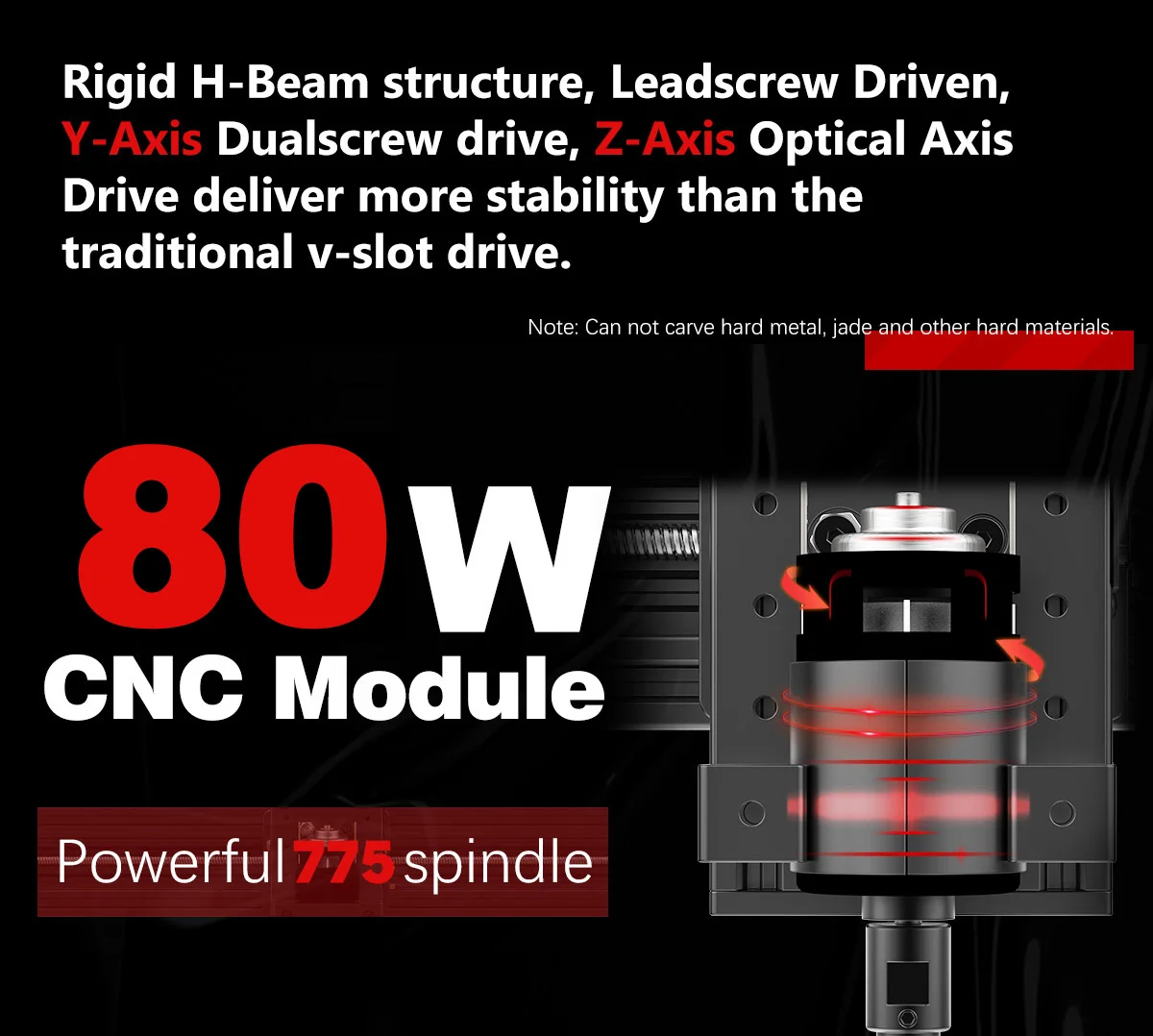

Spindle parameters ： 24V 5A, 775 motor 8000RPM

Tool setting： software control

Control Board Compatibility： GRBL

Engraving speed MAX :   MAX800mm/min

Limit switch: X, Y, Z three-axis double limit + ESTOP

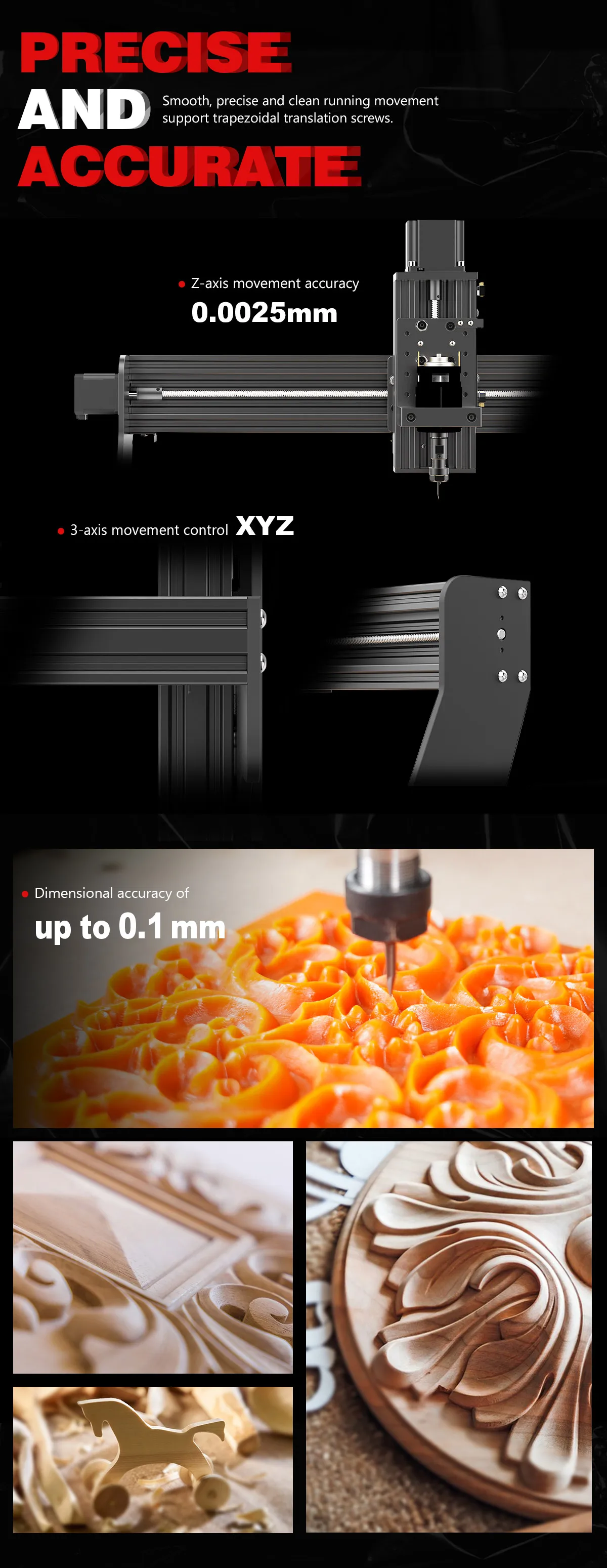

Engraving accuracy:   0.01mm

Stepper driver:   A4988 1.3A (other drivers can be connected to the motherboard)

Linear transmission mode: Built-in POM wheel

Stepping motor   NEMA 23 (2 phases, 1.5A) torque 20mN. m

Transmission type ： T8 screw pitch 2mm lead 4mm screw
/ Y-axis Double Y-axis with built-in rollers

Emergency stop switch Yes

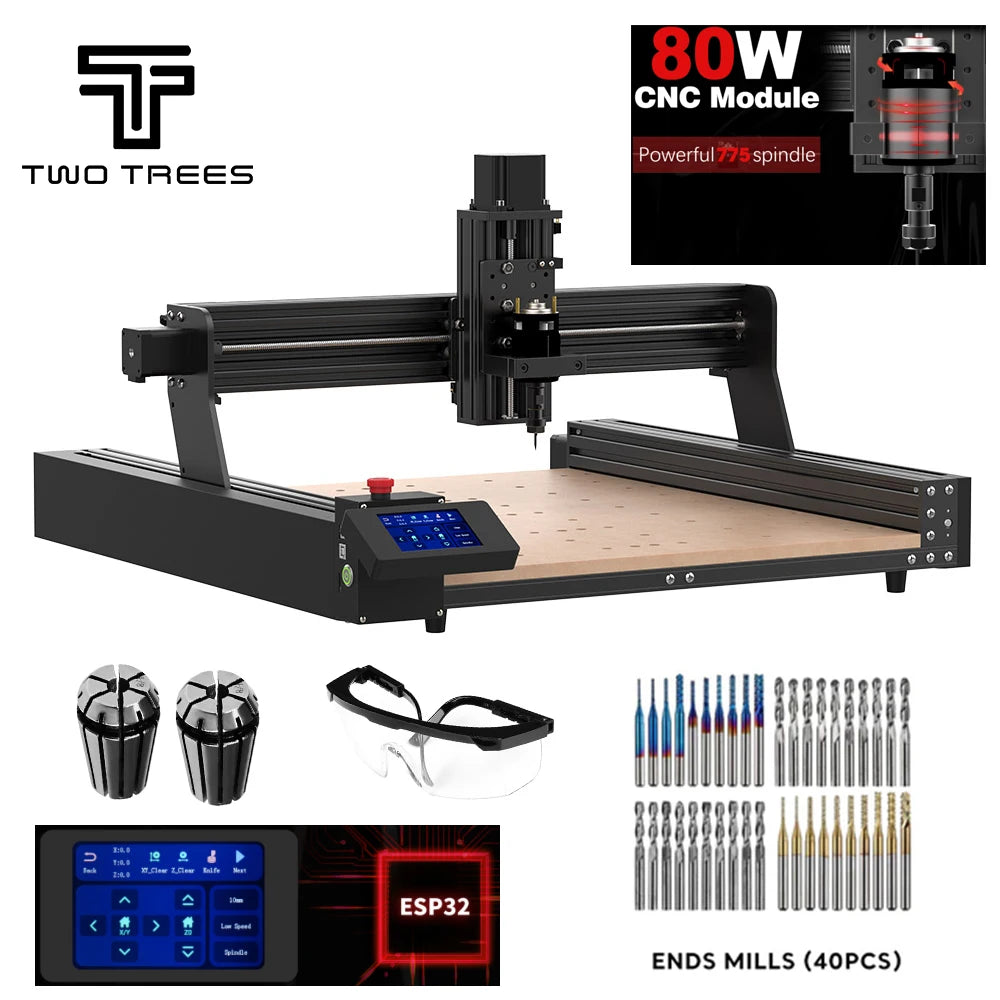

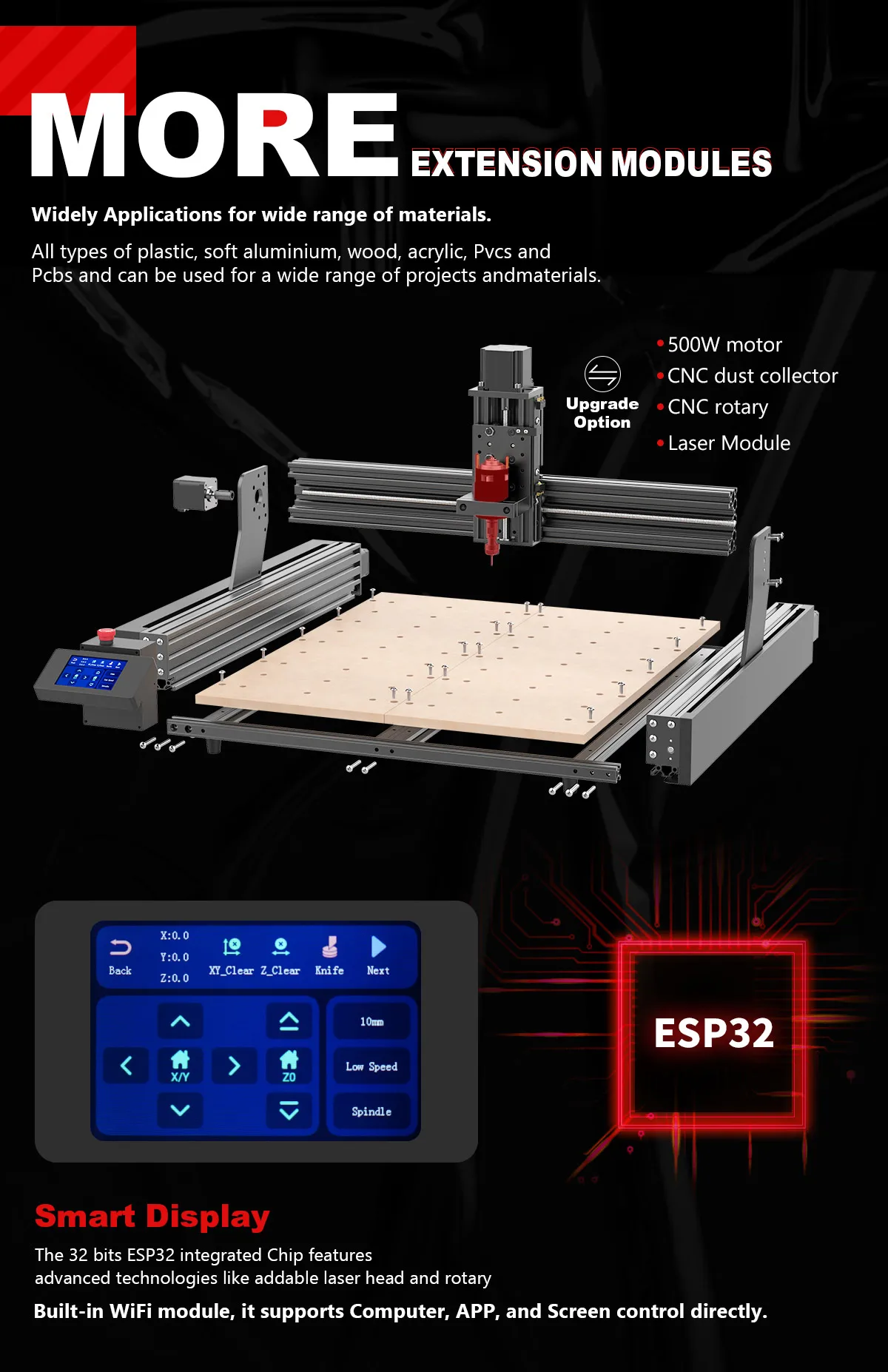

The motherboard adopts ESP32 highly integrated chip with low power consumption, high stability and reliability, ultra-high processing speed and large memory, supports offline controllers, supports four axes, and supports PWM laser signals.

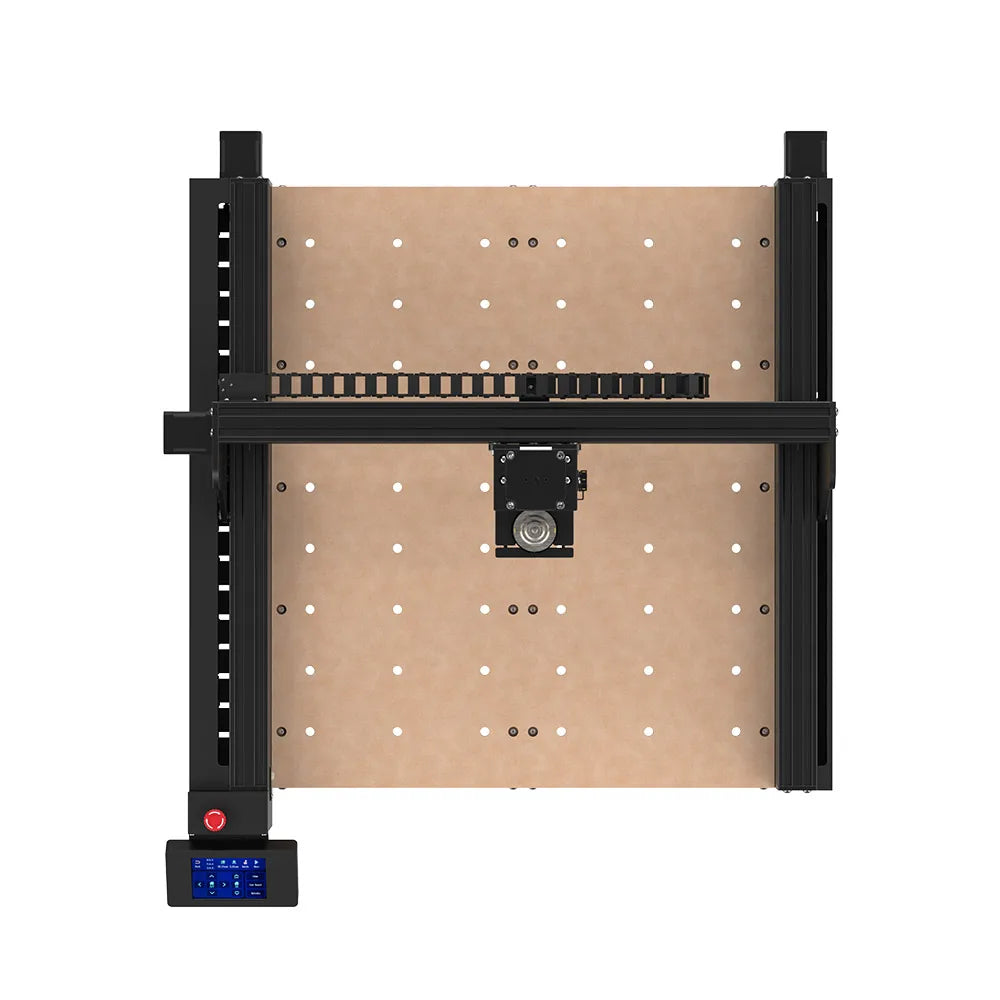

Harness management: XY energy chain

CAM software

control: Candle

Programming: CarvecoMaker, Artcam, Easel

Operating system Windows XP/7/8/10, MAC OS

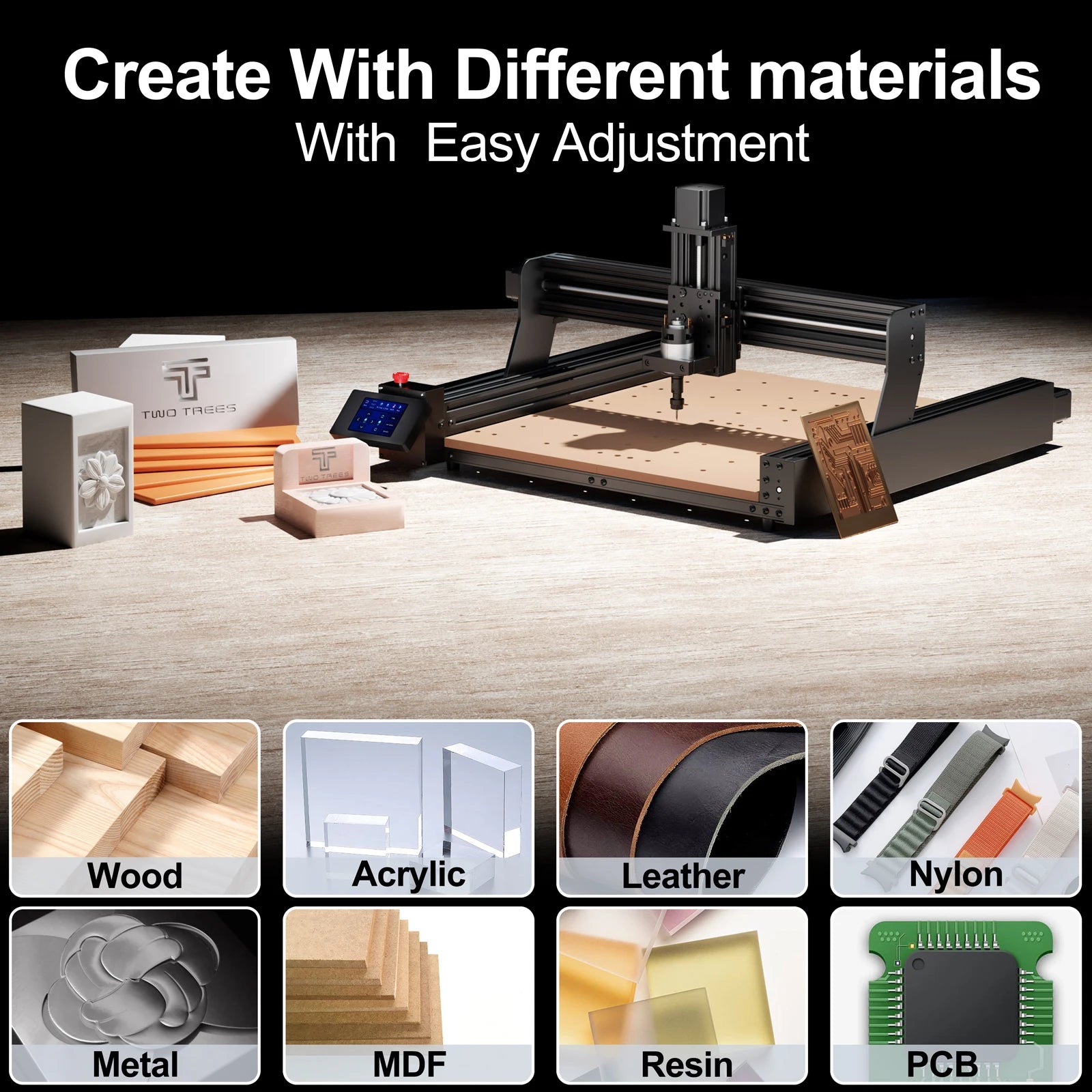

Engraving materialsEngraving and cutting MDF, PVC, acrylic, solid wood, particle board, plywood, organic board, epoxy resin, nylon, PCB, aluminum, copper, carbon fiber board, etc.
