Photon Mono 4 Ultra 7 Inch 10K LCD 3D Printers High Speed UV Resin 3D Printer Printing Size 236mm*231mm*430mm 2.2L
Photon Mono 4 Ultra 7 Inch 10K LCD 3D Printers High Speed UV Resin 3D Printer Printing Size 236mm*231mm*430mm 2.2L
Couldn't load pickup availability
SPECIFICATIONS
Auto Leveling: No
Bed Temp: N
CE Certification: Yes
Certification: CE
Consumables Diameter: N
Control Panel: 4.3" TFT touch-control
Diameter Temp: N
Exposure Screen: 7" monochrome
File Format: ALL
Fliament: UV Resin
Hign-concerned Chemical: None
Interface Type: USB
Light Source: COB Light Source and Fresnel Lens and Factory Algorithm Calibration
Machine Leveling: 4-point manual leveling
Maximum Print Size: 6.04*3.42*6.48inch (LWH)
Maximum Printing Speed: 2.76 in./hr.
Maximum print volume: 2.2L/74.4oz.
Molding Technology: LCD
Net Weight: 5KG/11lb.
Nozzle Diameter: N
Operating System: Photon Mono 4 Ultra
Precision: 10K+ 9024x5120px
Printing Dimensions: 6.04*3.42*6.48in./153.4*87.*165mm (HWD)
Product Dimensions: 236mm*231mm*430mm/ 9.29*9.09*16.93in.(HWD)
Slice Software: Anycubic Photon Workshop
Slice Thickness: 0.02-0.15mm
Voltage: 110-220V
Wireless Connectivity: None
Warm reminder:
①The Photon mono 4 Ultra 3D printer is an updated version of the Photon mono X 6Ks 3D printer

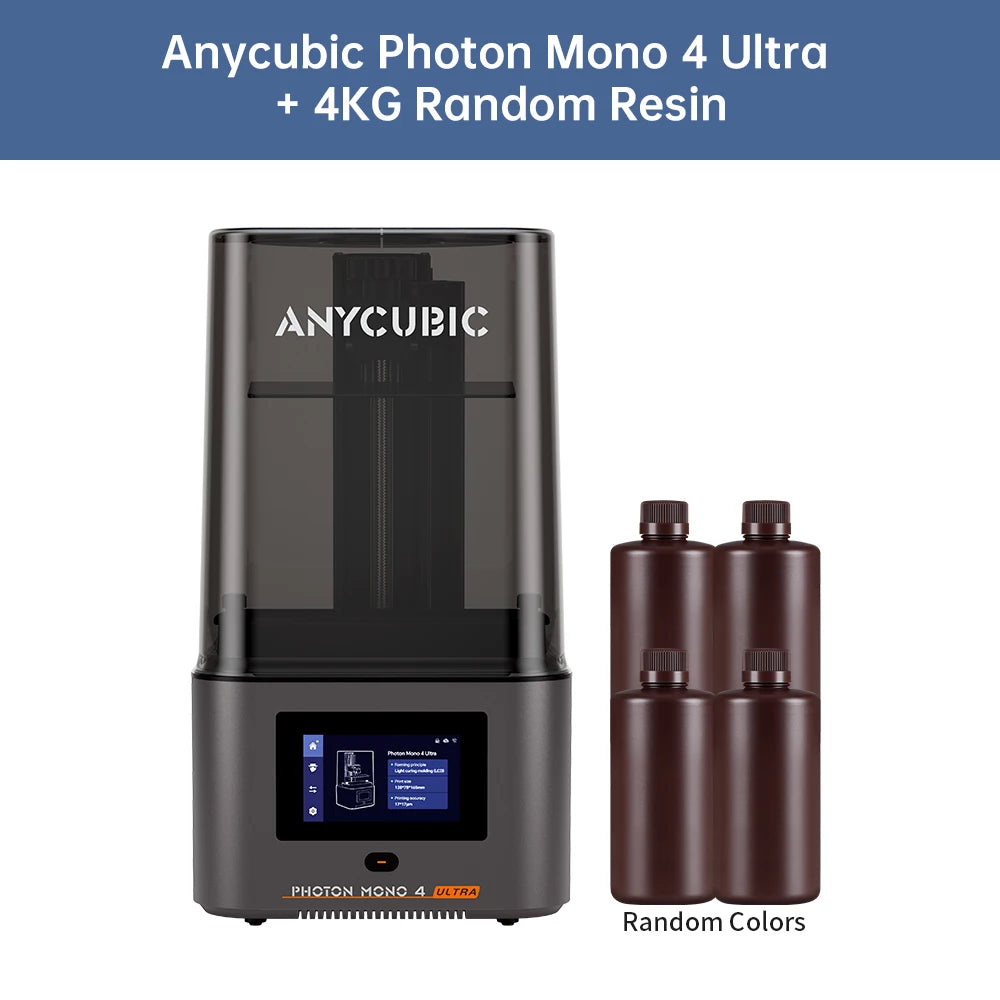

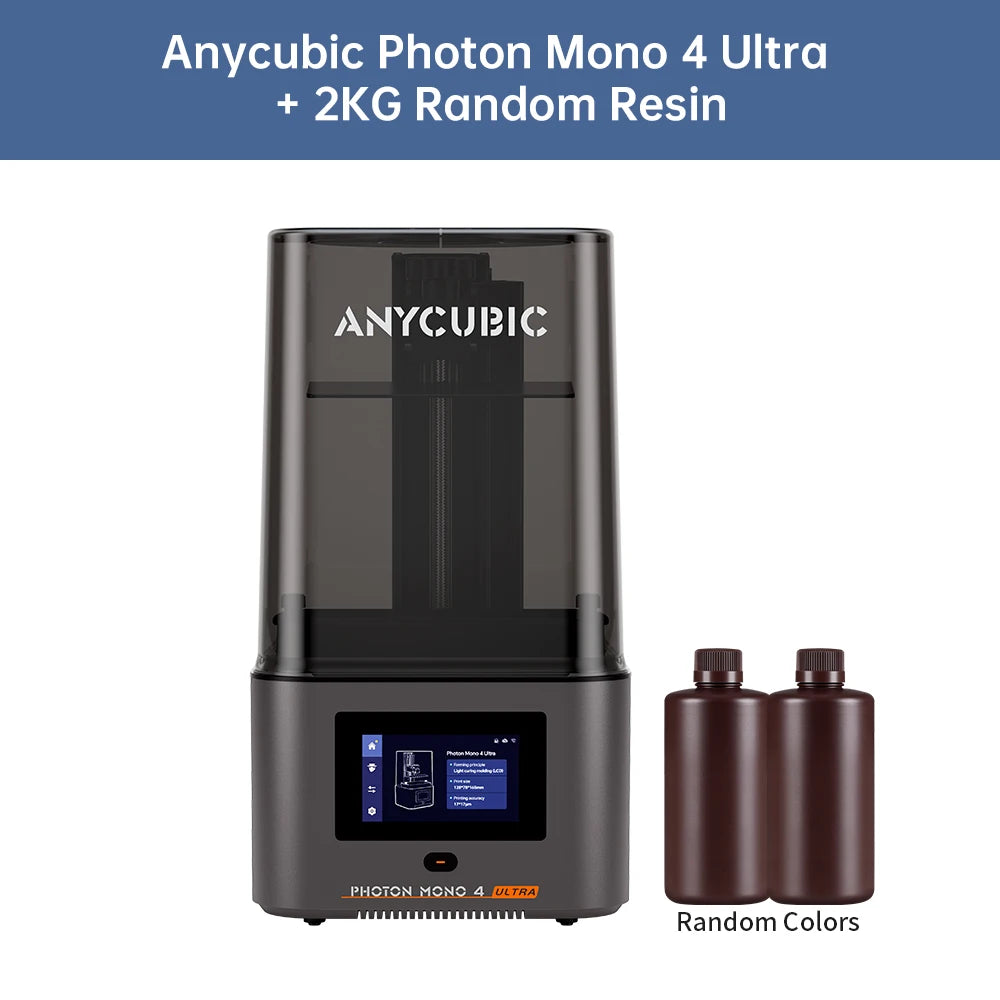

② For Russian users show free activities: buy Photon mono 4 Ultra 3D printer free with random resin 1kg
ANYCUBIC Photon Mono 4 Ultra V2
Technical Specifications
●Z Axis：Single liner with 20μm accuracy
● Build Platform: Laser engraving aluminum alloy
● Exposure Screen: 7" monochrome
●LCD Resolution：10K (9024*5120px)
● Light Source: COB Light Source and Fresnel Lens and Factory Algorithm Calibration
● Control Panel: 4.3" TFT touch-control
● Data Input: USB-A 2.0, WIFI
● Machine Leveling: 4-point manual leveling
● Printing Speed 1: 80mm/h peek speed(Standard Resin 0.1mm layer height)
● Printing Spee2: 120mm/h peek speed(High Speed Resin 0.1mm layer height)
● Printing Dimensions: 6.04*3.42*6.48in./153.4*87.*165mm (HWD)
● Product Dimensions:236mm*231mm*430mm/ 9.29*9.09*16.93in.(HWD)
● Machine Weight: 5KG/11lb.
●Maximum print volume：2.2L/74.4oz.

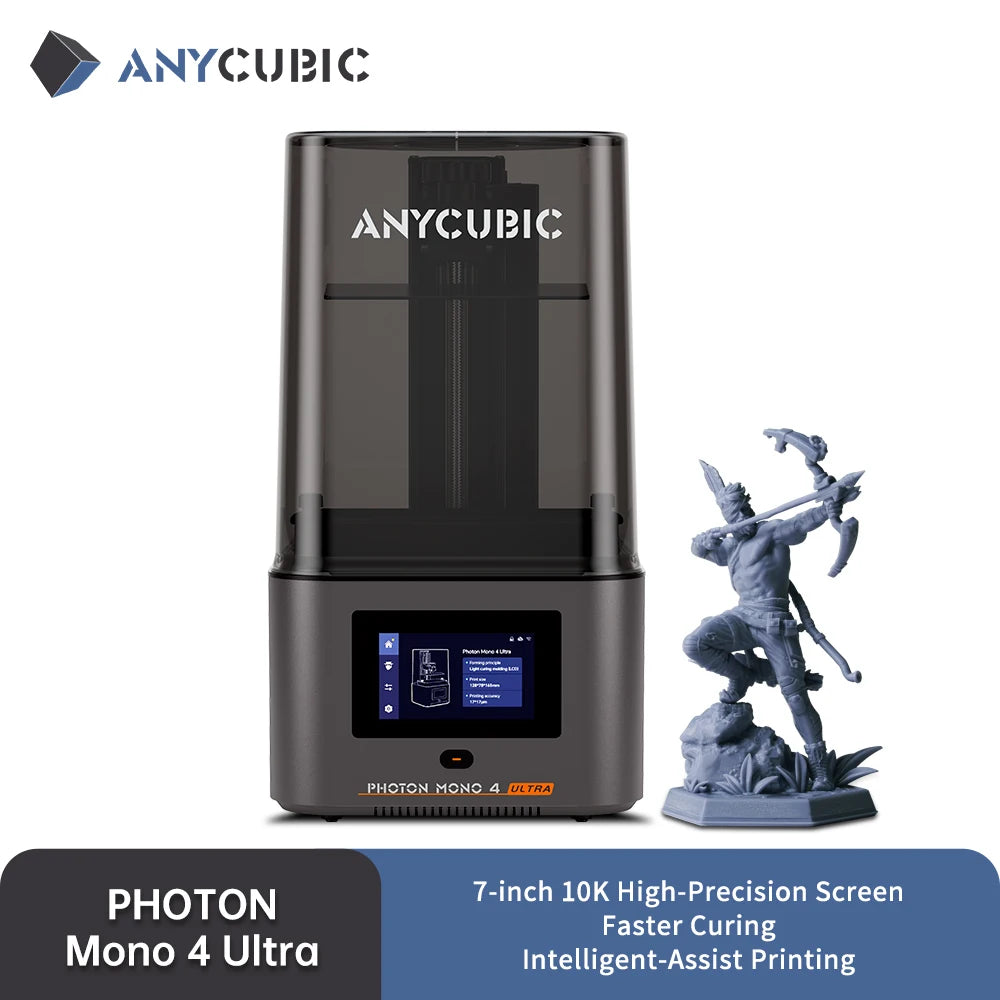

Outsmart, Outstart
10K High-Precision | Faster Curing | Intelligent-Assist Printing

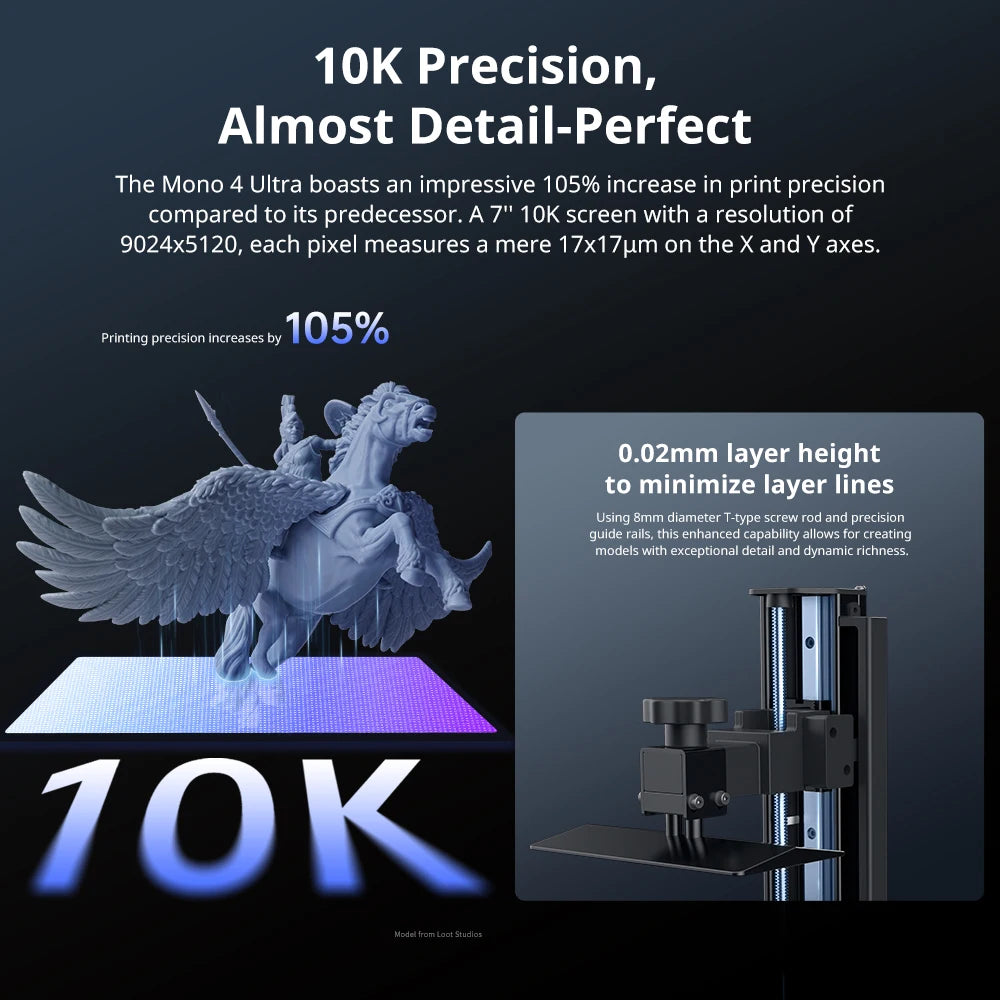

10K Precision, Almost Detail-Perfect
*The Mono 4 Ultra boasts an impressive 105% increase in print precision compared to its predecessor. A 7" 10K screen with a resolution of 9024x5120, each pixel measures a mere 17x17μm on the X and Y axes
*0.02mm layer height to minimize layer lines. Using 8mm diameter T-type screw rod and precision guide rails, this enhanced capability allows for creating models with exceptional detail and dynamic richness.
Consistent, Even on All Layers
With the Light Uniformity Algorithm, each device undergoes rigorous screen energy calibration, the light uniform rate reaches >=90%. The algorithms adjust energy points outside the dynamic range, precisely controlling curing light energy. This reduces dimensional errors in each printed layer, ensuring consistent printing.

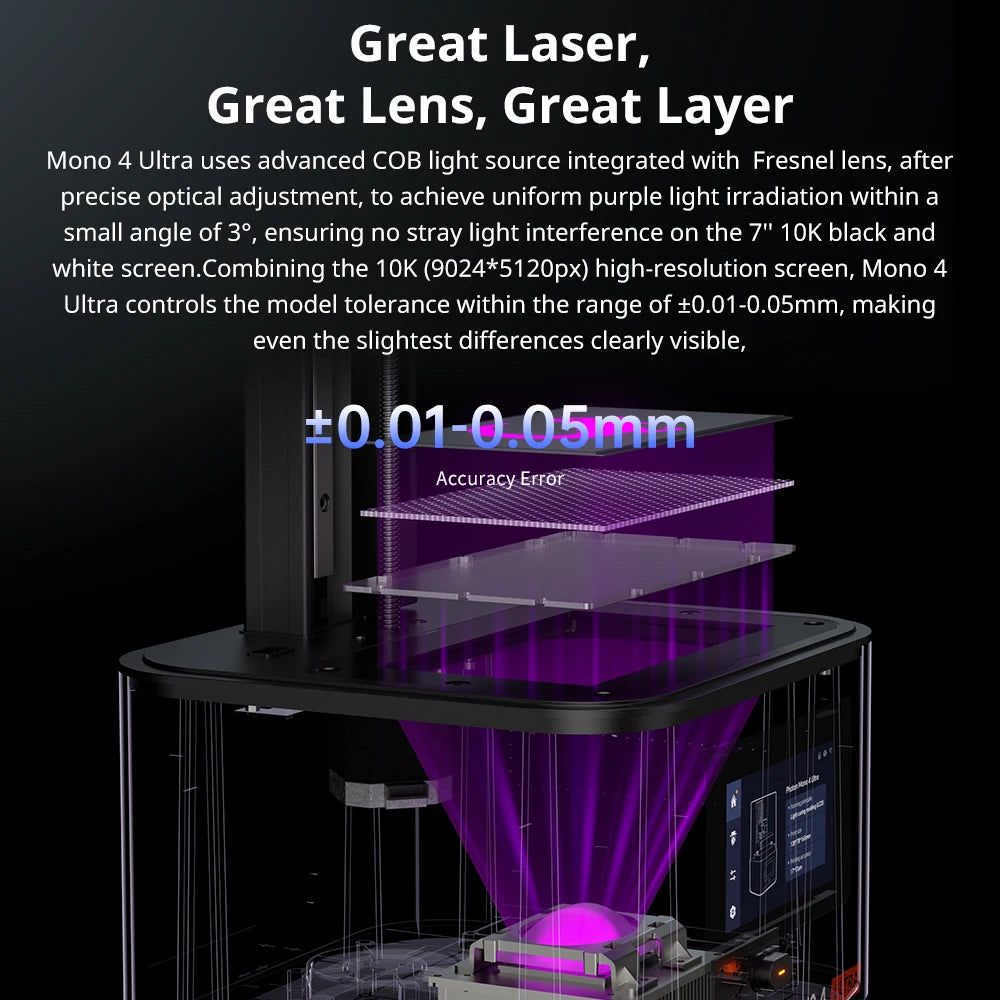

Great Laser, Great Lens, Great Layer
Mono 4 Ultra uses advanced COB light source integrated with Fresnel lens, after precise optical adjustment, to achieve uniform purple light irradiation within a small angle of 3, ensuring no stray light interference on the 7" 10K black and white screen. Combining the 10K (9024 5120px) high-resolution screen, Mono 4 Ultra controls the model tolerance within the range of 0.01-0.05mm, making even the slightest differences clearly visible, ensuring that every detail of the model is accurately carved.
Level Up & Speed Up
*It's the Latest ACF Film, not Luck Release film coating improvements
* Intelligent Release Algorithm Save 40% on print time, boost 100% of your spirit.
360°Self-Check. 0% Frustration
Printer auto- inspection | Residual resin detection | Left over resin monitoring | Failed print detection | Intelligent Lifespan Management

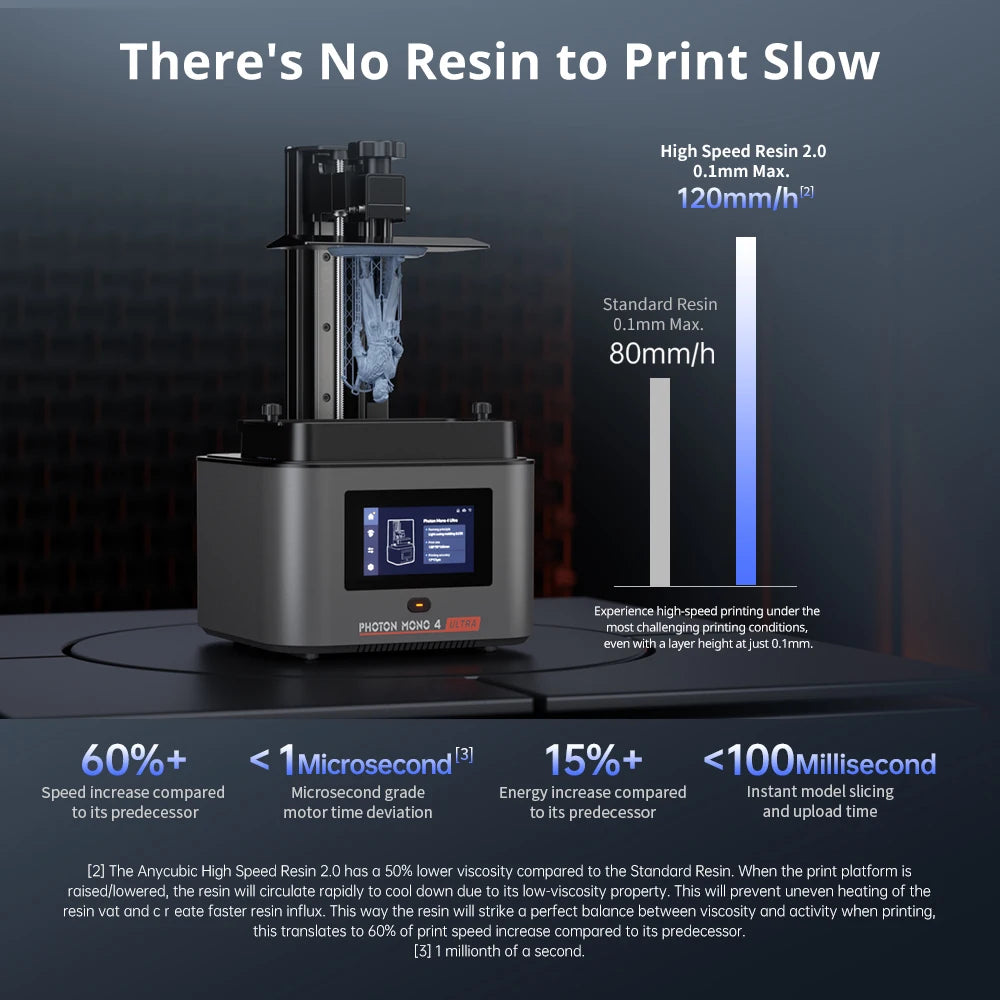

There's No Resin to Print Slow
*High Speed Resin 2.0 0.1mm Max 120mm/h
*Standard Resin 0.1mm Max 80mm/h
*Experience high-speed printing under the most challenging printing conditions, even with a layer height at just 0.1mm.
4-Point Leveling Efficiency
*Every Mono 4 Ultra printer was assembled, calibrated, tuned, andtested before shipment. So when you received the printer,simply unbox and start printing! (Leveling is needed before printing.)
HD Touchscreen with 8 Languages
Activated Carbon Air Purifier
The built-in high-density activated carbon filter has a thickness of 18 mm and a weight of 17 grams. It can effectively adsorb odor molecules generated during the 3D printing process, improving the air quality in the area. (This configuration requires additional optional purchase)
Breakthrough in Resin Technology
