SPECIFICATIONS

Auto Leveling: Yes

Bed Temp: 100

CE Certification: Yes

Certification: CE

Color Print Speed: 300 mm/s

Consumables Diameter: 1.75mm

Interface Type: USB

Maximum Print Size: 260x260x300 mm

Maximum Printing Speed: 500 mm/s

Maximum Working Speed: 500 mm/s

Molding Technology: FDM

Nozzle Diameter: 0.4mm

Operating System: Creality Print 5.1 and newer versions

Printing Speed: 300 mm/s

Slice Software: Creality Print 5.1 and newer versions

Voltage: 110-220V

Wireless Connectivity: None

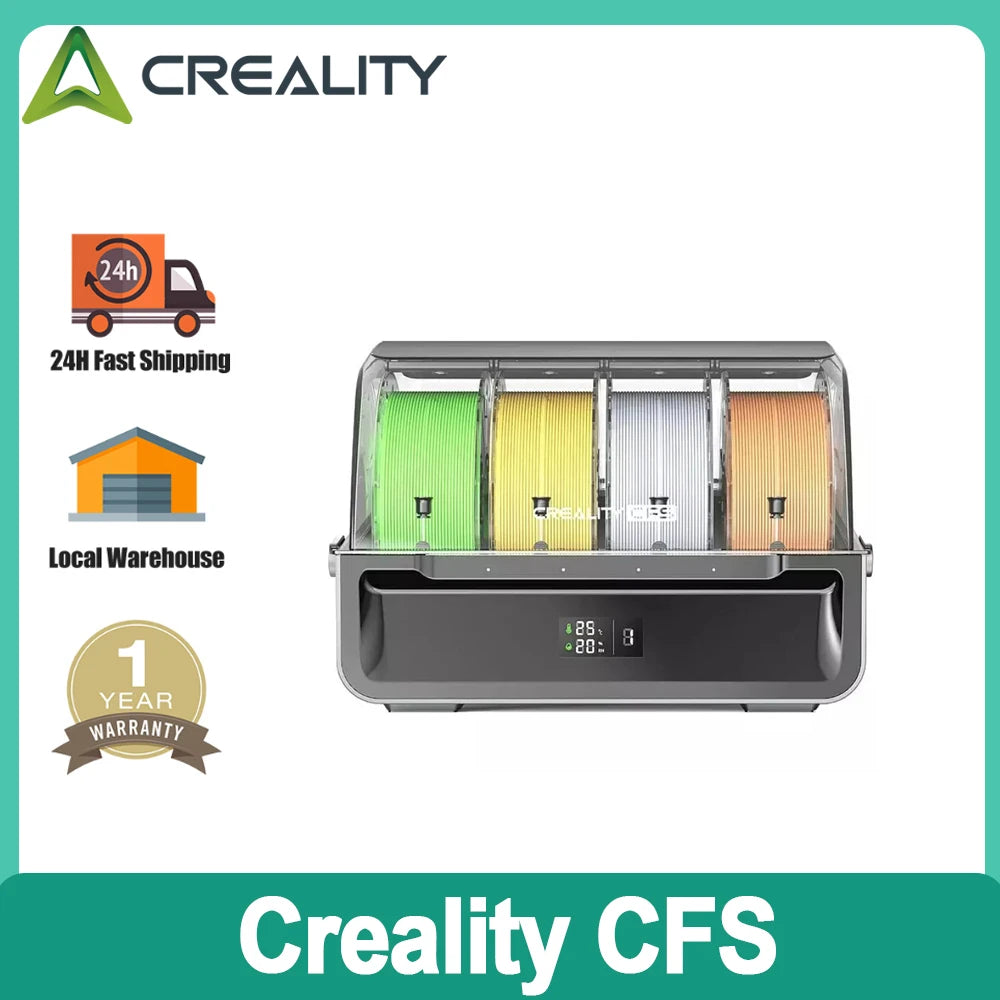

CFS SPECIFICATIONS

Product Dimensions : 379x314x276 mm

Product Net Weight : 4.56 kg

Input Voltage : DC 24V

Rated Power : 20W

CFS Connection : ≤4

RFID Filament Recognition : Yes

Supported Filaments : PLA/PETG/ABS/ASA/PET/PLA-CF( *Not compatible with flexible TPU, damp BVOH/PVA, or warped cardboard spools)

Display Screen : Digital screen showing temperature and humidity

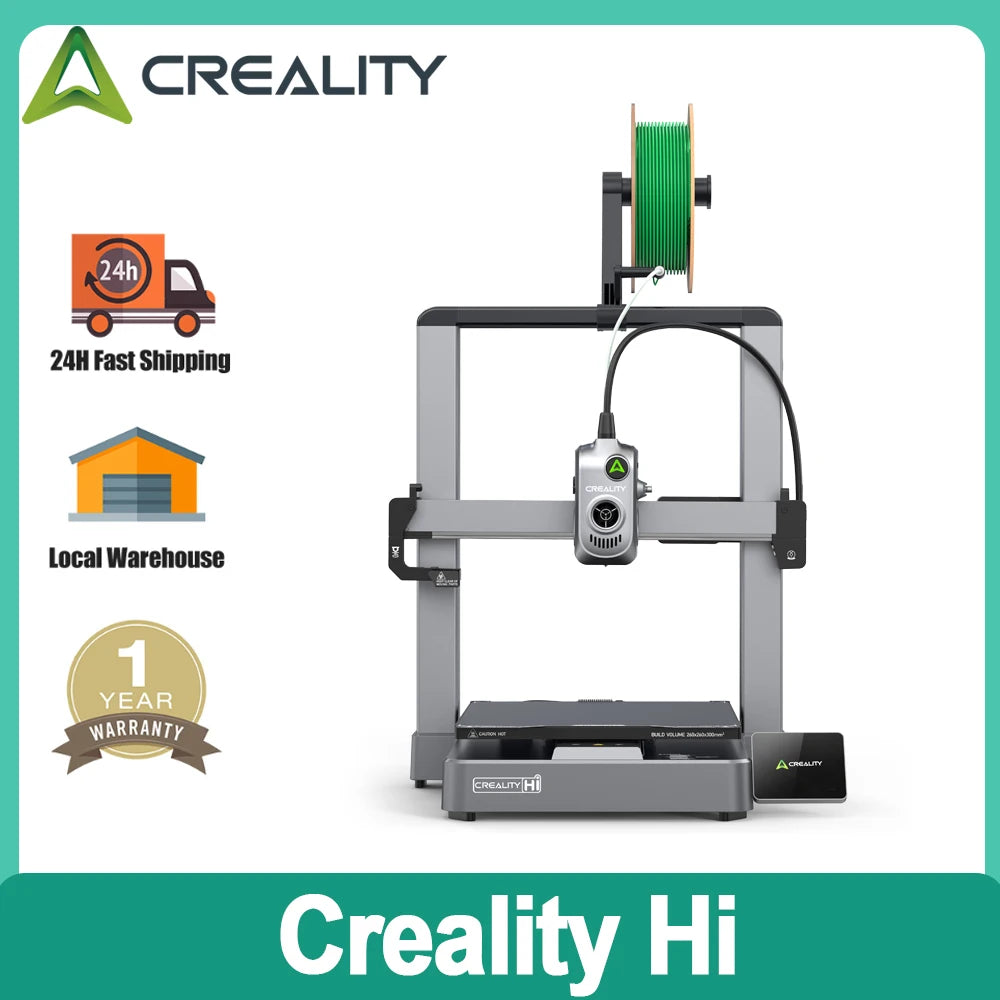

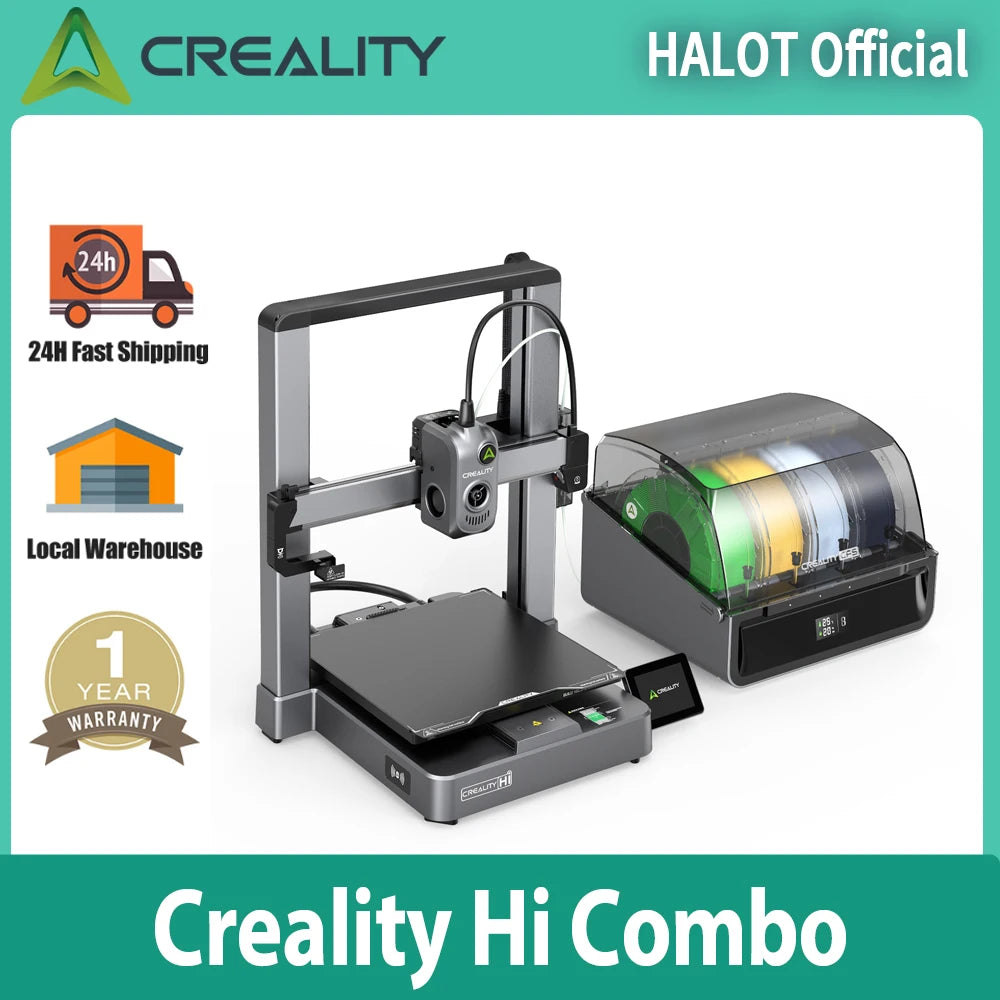

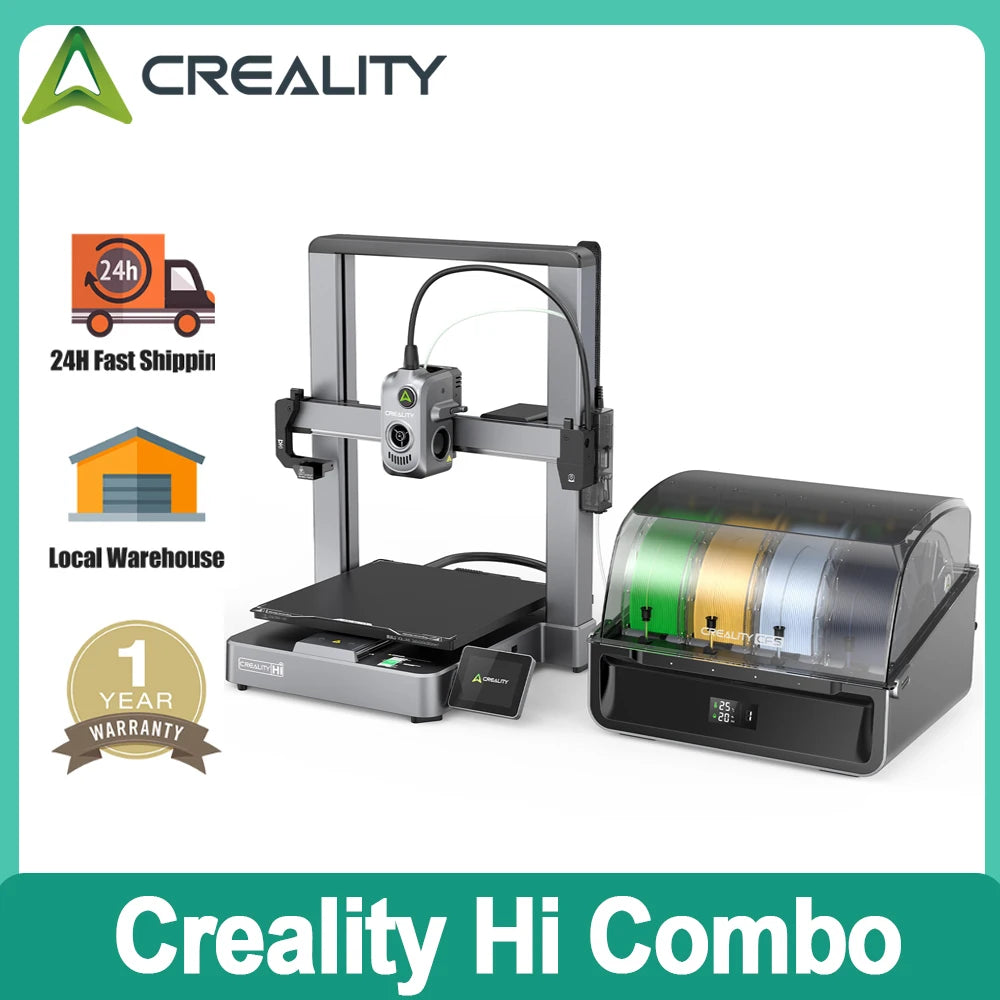

Creality Hi and Creality Hi Combo SPECIFICATIONS

Printer Body

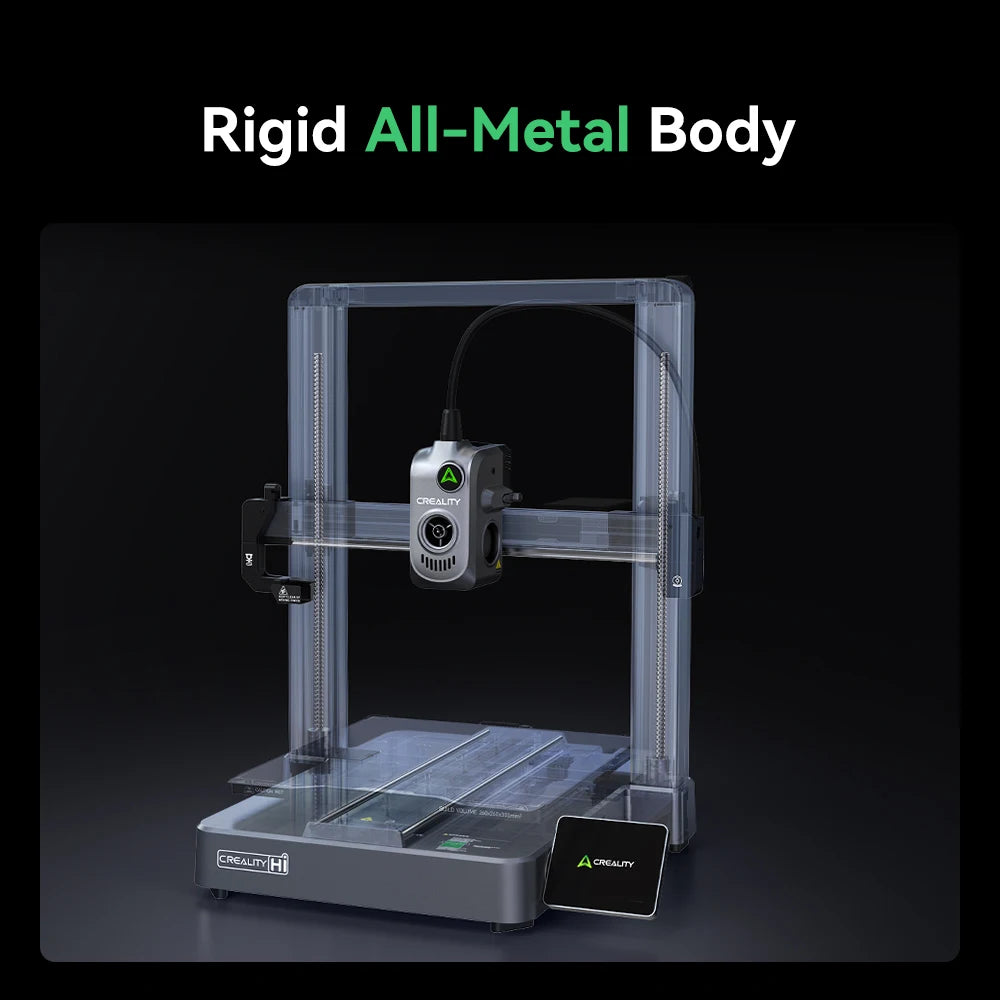

Frame : Aluminum Alloy

Build Volume : 260x260x300mm

Speed

Printing Speed :  ≤12000 mm/s

Acceleration : 300 mm/s typical speed500 mm/s max speed

Physical Dimensions

3D Printer Dimensions  :  409x392x477 mm

Printer Package Dimensions : 650x460x560 mm

Combo Package Dimensions : 650 x460 x240 mm

3D Printer Net Weight : 8.75 kg

Combo Net Weight : 13.31 kg

3D Printer Gross Weight : 11.58 kg

Combo Gross Weight : 19.14 kg

Heatbed

Build Plate : Two-sided epoxy flexible build plate

Heatbed Temperature : ≤100 ℃

Toolhead

Extruder : Direct drive extruder

Hotend : All-metal & integrated

Extruder Gears : Steel

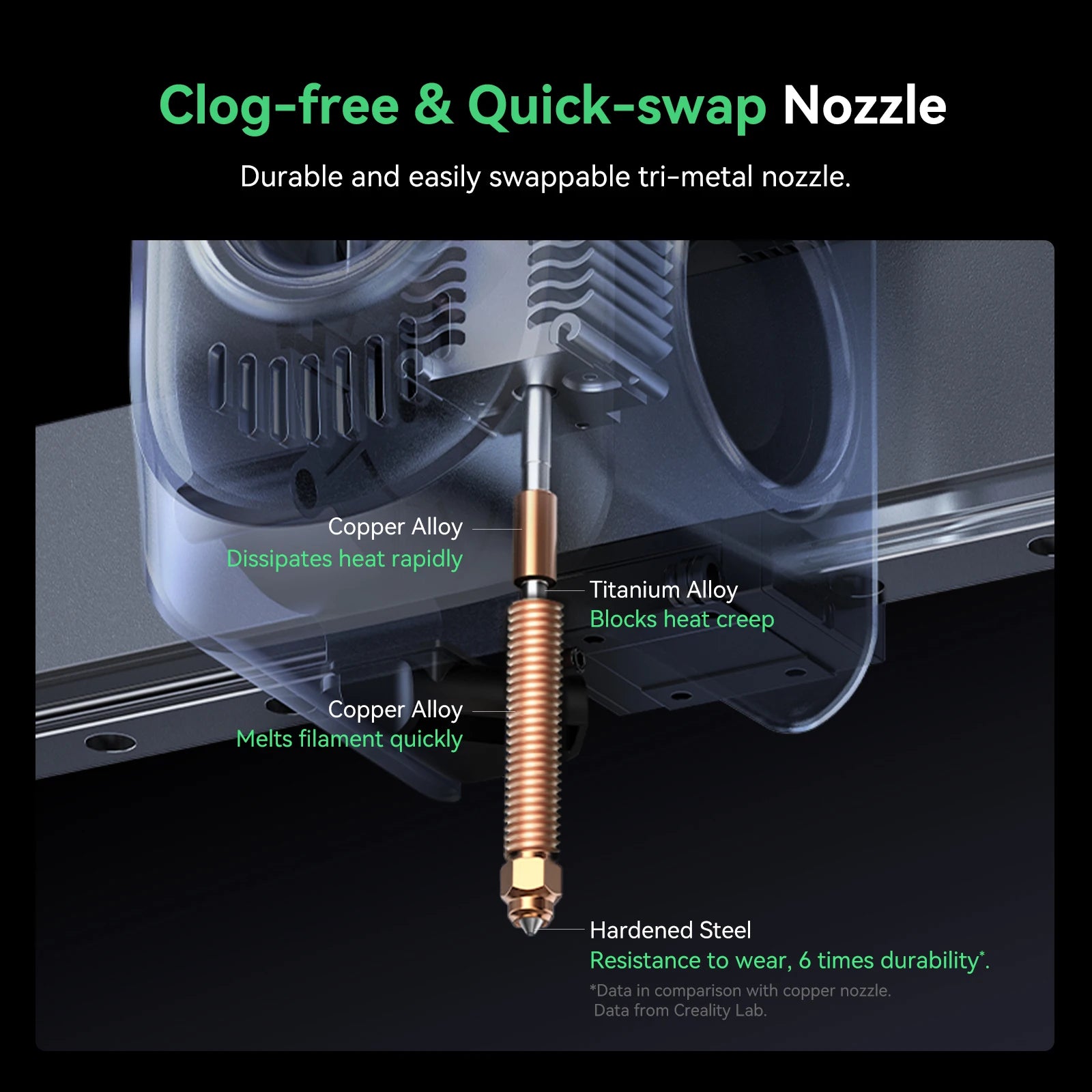

Nozzle : Durable tri-metal nozzle

Nozzle Temperature : ≤300℃C

Nozzle Diameter (Default)  : 0.4 mm

Nozzle Diameter (Optional) : 0.6 mm, 0.8 mm

Filament Cutter : Built-in

Filament Diameter : 1.75 mm

Cooling

Part Cooling Fan : Closed-loop Control

Hotend Fan : Closed-loop Control

Electrical Requirements

Input Voltage :AC 100~240V/50 Hz

Rated Power : 1150W@220V; 390W@110V

Sensors

Monitoring Camera : Yes

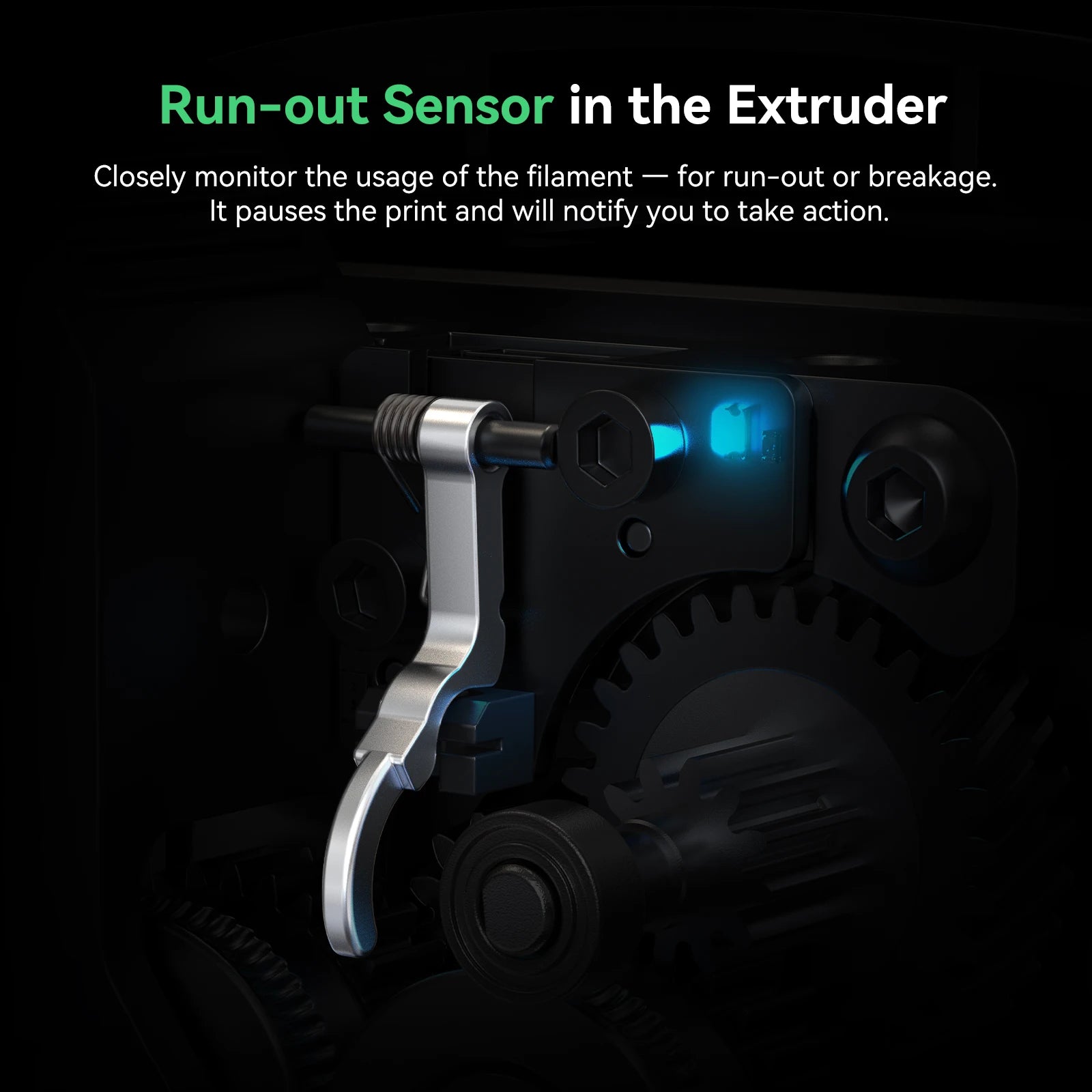

Filament Run-out Sensor : Yes

Filament Tangle Detection : Yes

Auto Filament Relay : Yes (with CFS)

Supported Filaments : Hyper-PLAVPLAPETG/ABS/PLA-CF

Electronic Parts

Display Screen : 3.2"color touch screen (320x240px)

File Transfer : USB drive/WiFi

File Storage : 8GB

User Interfaces : Touch screen, Creality Cloud App, PC program

MCU: Dual-core ARM Cortex-A7 microprocessor

Software

Slicing Software : Creality Print 5.1 and newer versions

Supported Languages : English, German, Spanish, French ,Italian, Portuguese, Turkish, Russian, Japanese, Chinese

Others

Leveling Method : Leveling with strain gauge

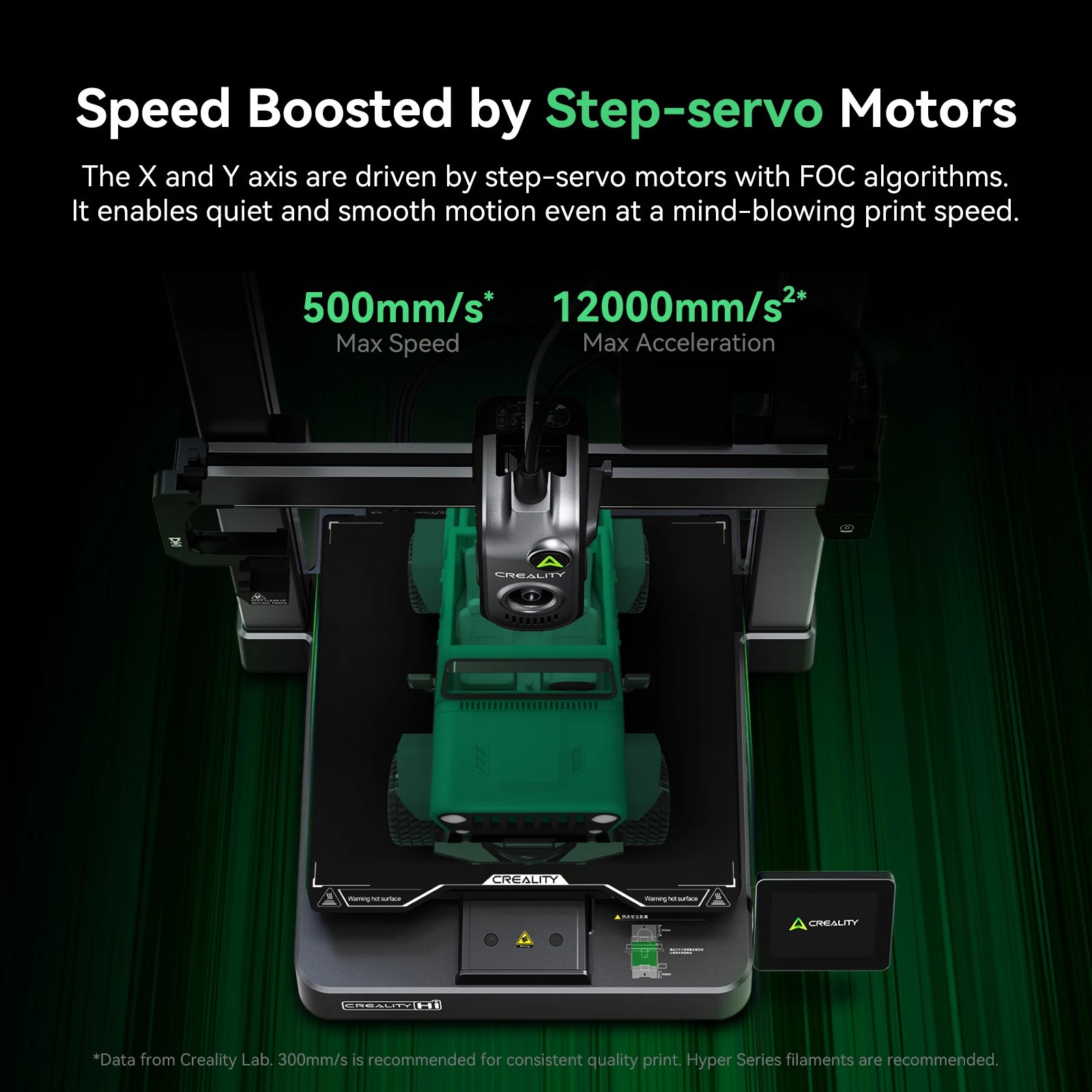

XYZE Motor : Step-servo motor for X/Y axis ; step motor for others

Input Shaping (G-Sensor) :  Yes

Lighting Kit :  Yes

CFS Connection : ≤4 (Separate power source required for 2 and more units)
