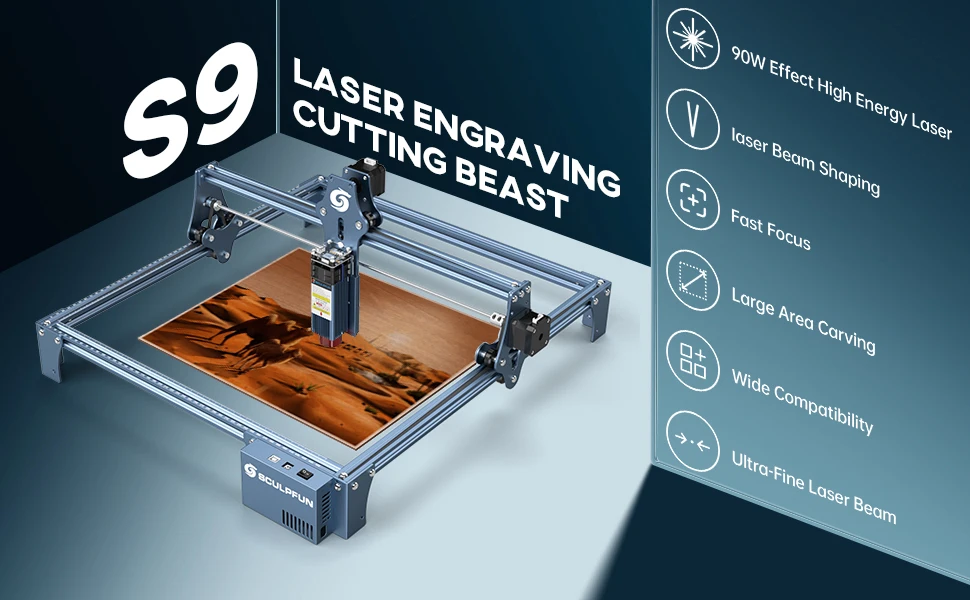

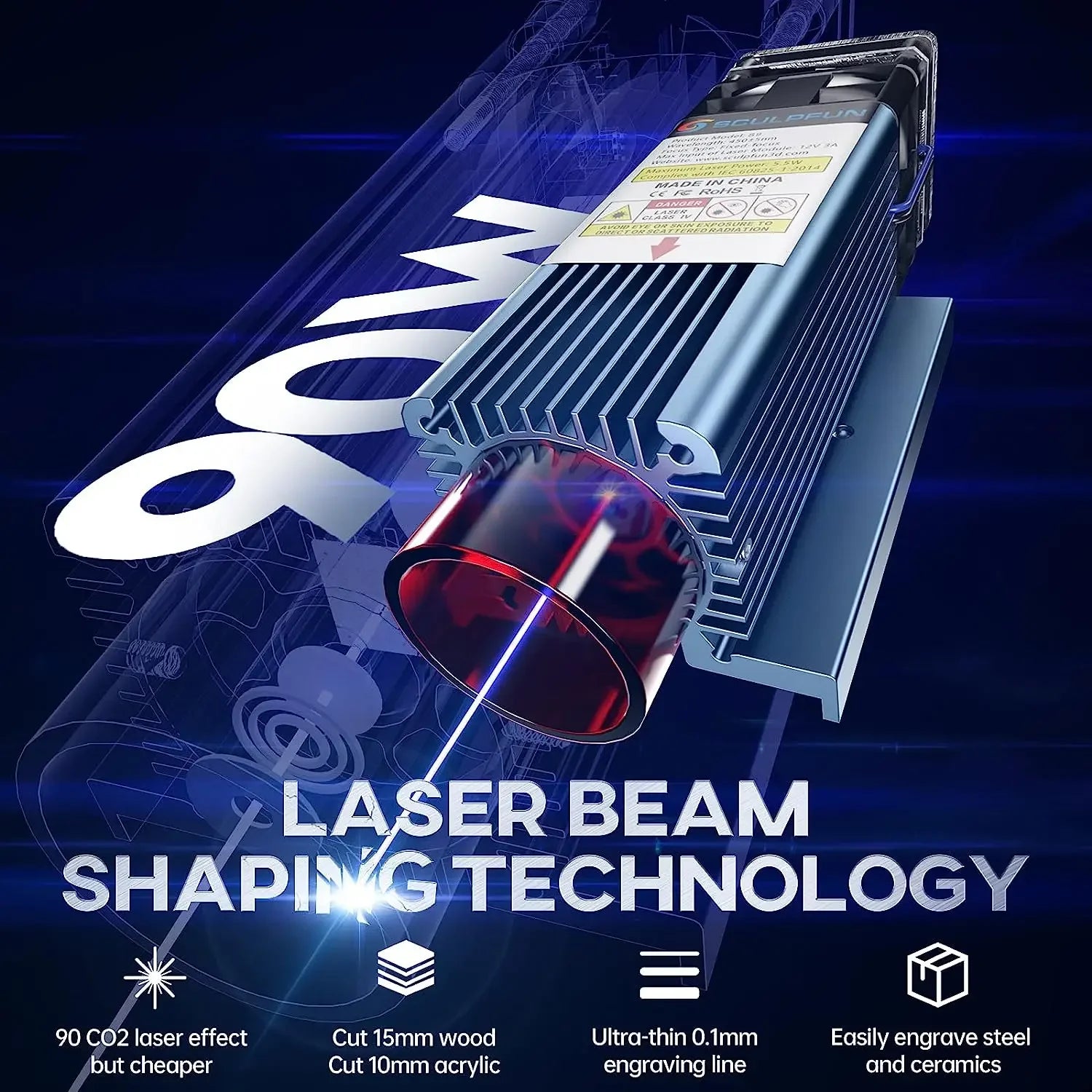

SCULPFUN S9 90W effect laser engraving machine ultra-thin laser beam shaping technology High-precision wood acrylic laser engraver cutter 410x420mm

engraving area full metal structure Quick assembly design (90W CO2 laser effect)

Product information:

Product model: SCULPFUN S9

Engraving size: 410*420mm

Engraving/cutting material:

Engraving materials: wood, paper, cardboard, plastic, white, PCB board, aluminum oxide, 304 Stainless steel, ceramic,dark stone

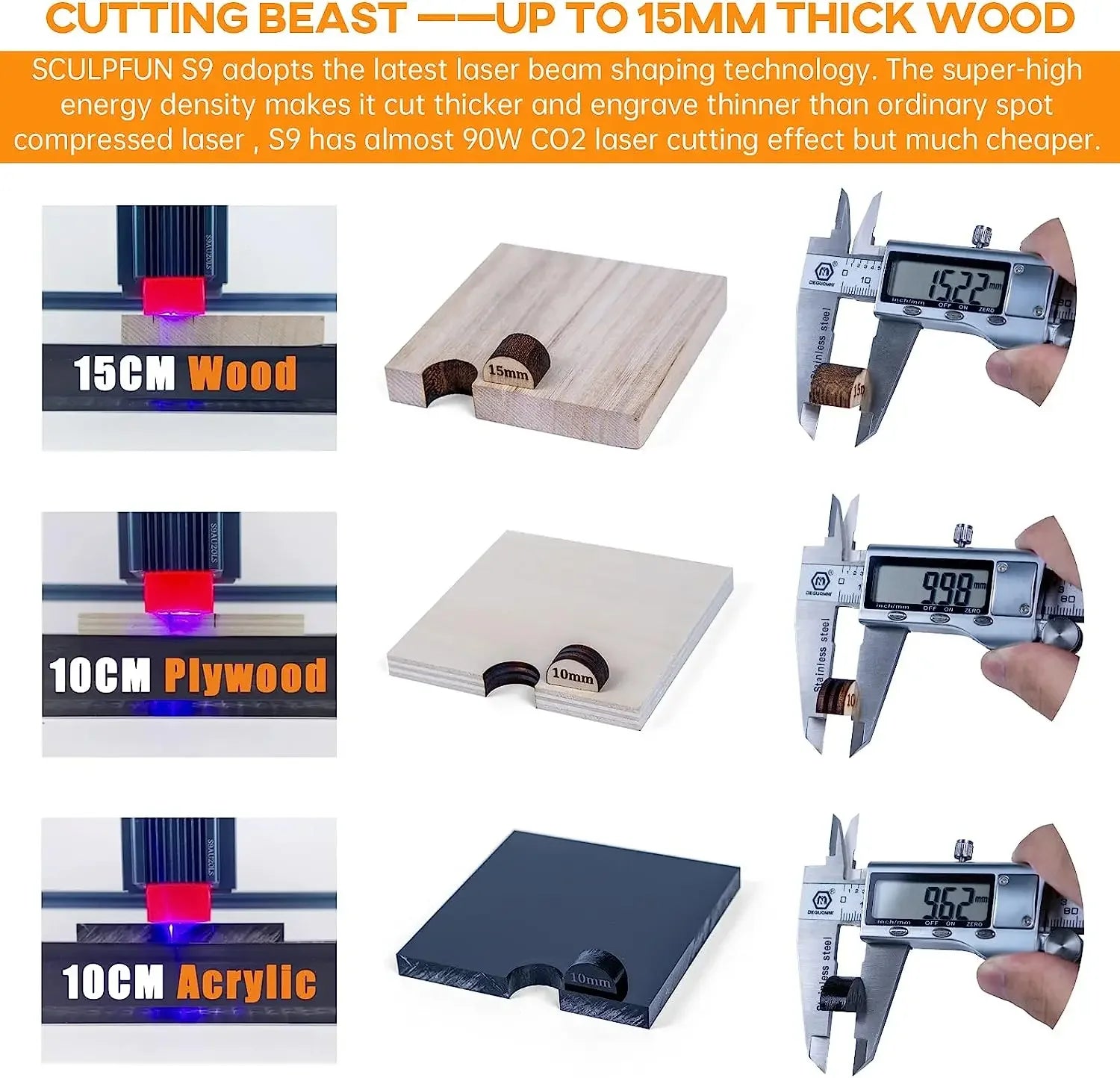

Cutting material: wood, acrylic, cardboard, fabric, bamboo, plastic board, KT board

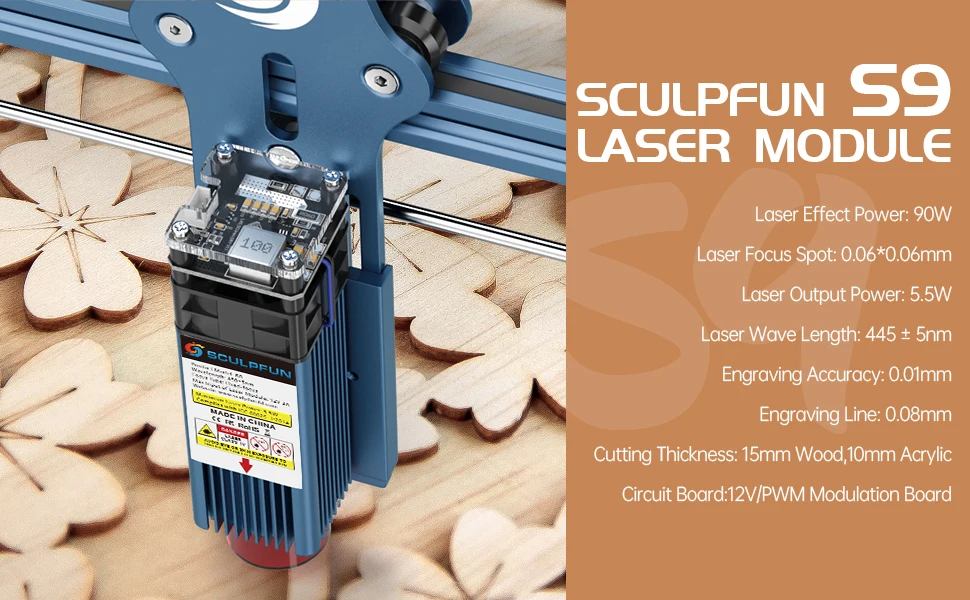

Laser effect power: 90W (cutting effect compared to 90W CO2 laser)

Machine Electricity Power: 30W (It has nothing to do with cutting or engraving performance,just electricity consumes)

Diode laser power: 5.5-6W (Please note that this is light energy and not electric energy)

Laser wave length 450±5nm

Engraving accuracy: 0.01mm

Focusing method: fixed focus laser + sliding device

Laser protective cover: The light filter cover on the laser protects the user's eyes and prevents animals grabing the laser spot.

Operating software: LaserGRBL, LightBurn, LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.

Data transmission method: USB connection

Power supply: International universal standard power input: 100-240V AC, 50/60HZ output: 12V 5A

Equipment net weight: 4.75kg

Package weight: 7kg

Packing size: 615*345*130mm

Certification: CE FCC RoHS FDA IEC

Note:

●For detailed machine instructions, please refer to the manual for parameter settings.

●When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.

● Please do not touch the laser emitter with your hand, or it may burn your hand.

● Please avoid strong impact on the machine.

● Children under 14 are not allowed to use this product and children over 14 need adult supervision.

● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.

Long Service Life Using the latest technology, it has been repeatedly tested, optimized and upgraded to efficiently handle complex commands for precise engraving and deep cutting. Improved motherboard and wiring for longer life.	New Eye Protection Design The laser filter filters 98% of UV light into your eyes. You and those around you can watch laser engraving without goggles. It also prevents animals from catching the laser spot.	Fast Focusing Design The S9 laser combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete the focusing.

Wide Compatibility This machine is compatible with various mature carving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode carving, supports Windows system, Apple system (LightBurn), carving file formats Support JPG, PNG, DXF, SVG, G- code, NC, BMP, etc.	Steel Pad for Protection The included A4 size steel pad protects the table from laser damage. Isolates fire hazards.	Ultra-thin Engraving Line Professional test pattern and film ruler show that the S9 engraving line is only 0.08mm, thinner than a hair. It means that the S9 has higher and more accurate engraving, clearer texture, more detailed and beautiful patterns.

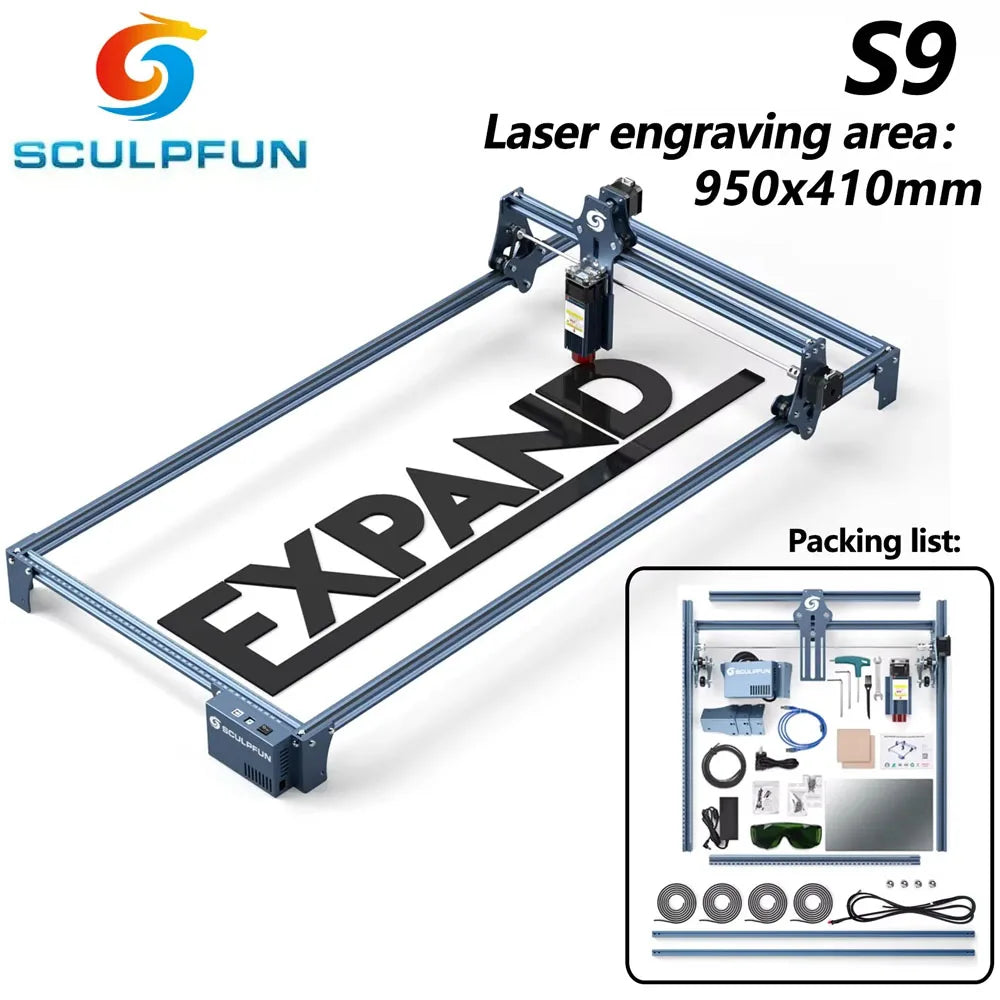

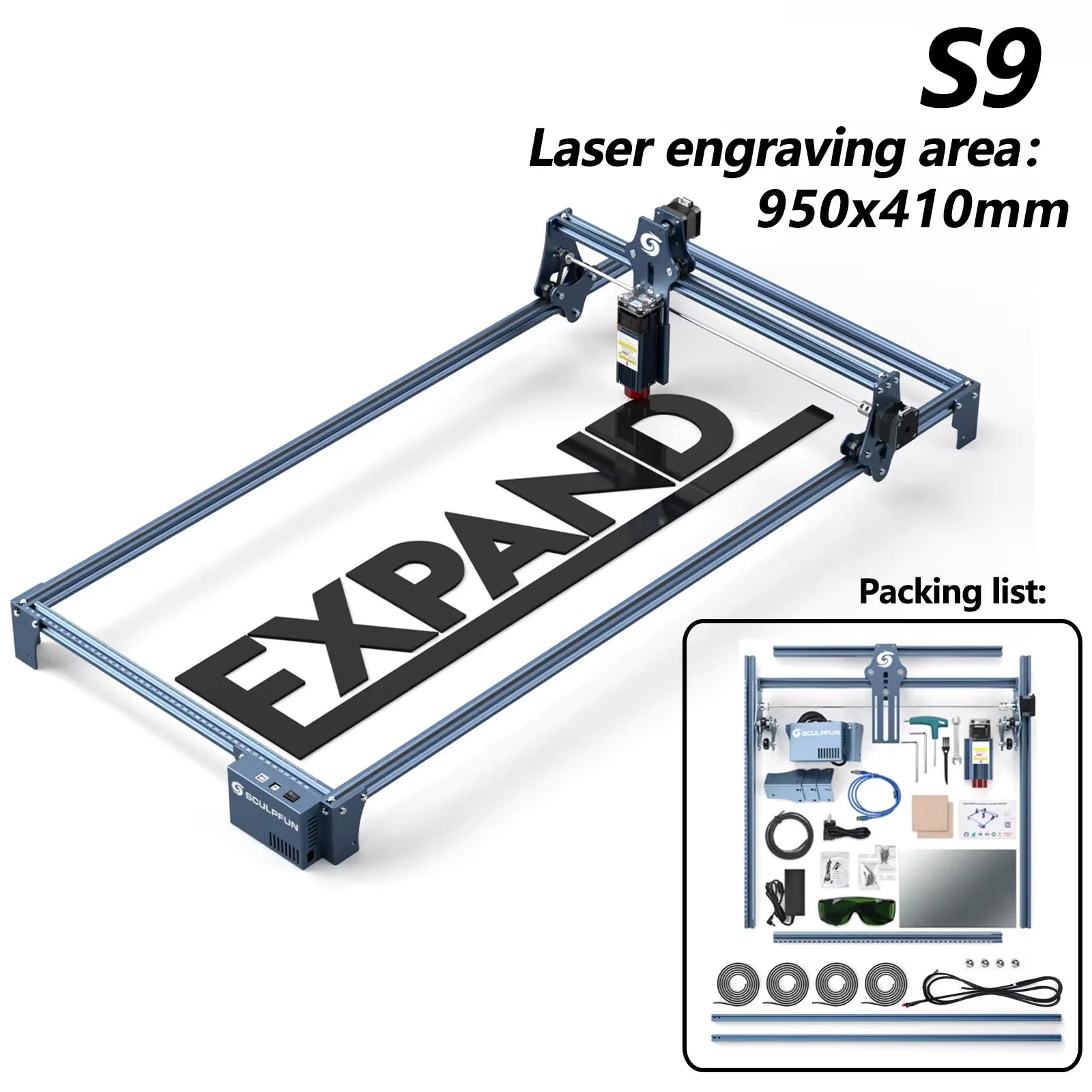

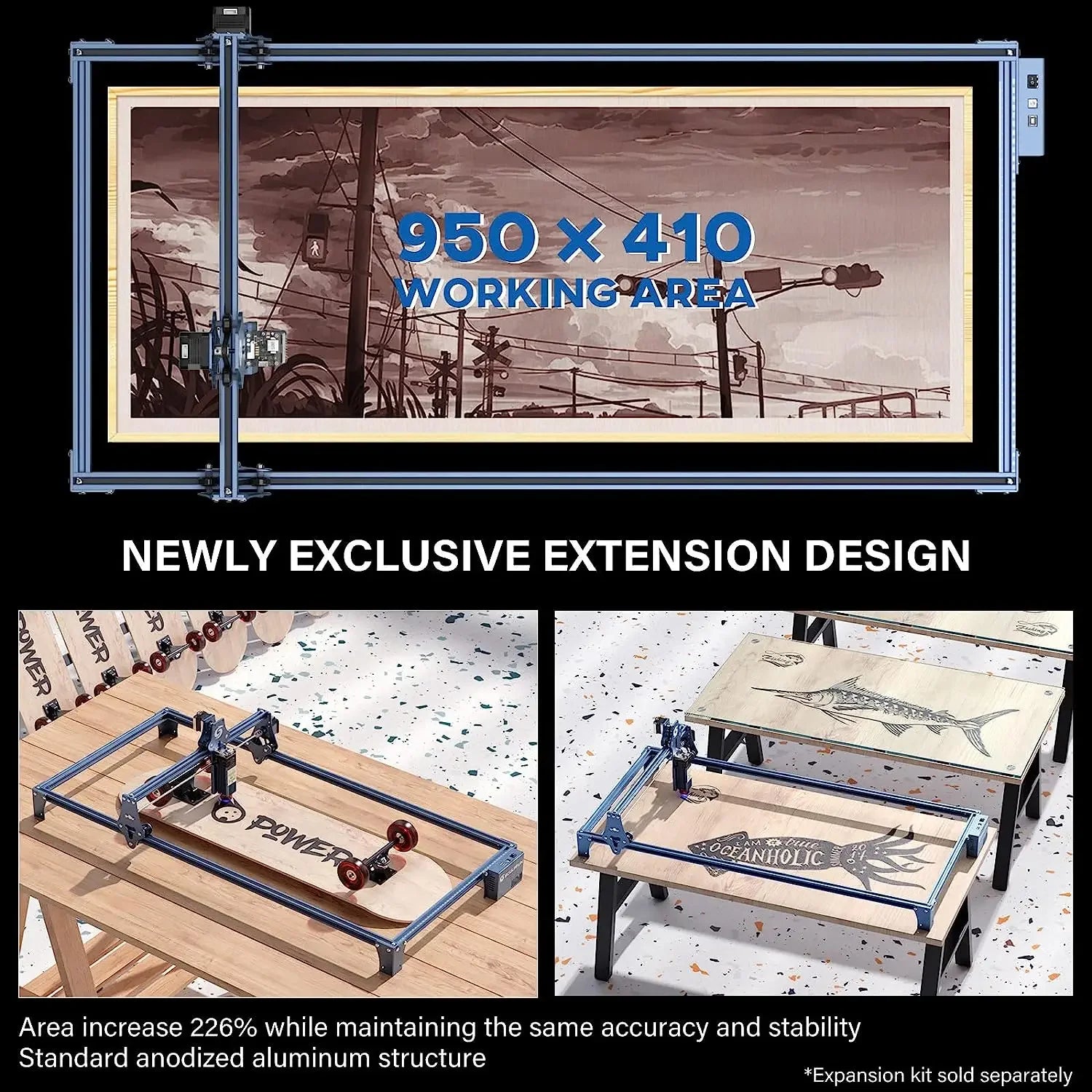

Structure Details Structured with anodized aluminum, durable and anti-rust; Equipped with a power switch to easily turn on, or turn off the machine in case of emergency.	Easy to Assemble Designed for easy-assembly, Includes detailed installation instructions and video, it only takes a few steps to complete the assembly.	Convenient Measuring Ruler X-axis and Y-axis are engraved with precise scale lines for quick measurement of engraved or cut objects.	Large Working Area The 410x420mm large working area can meet needs of small or large engraving and cutting. You can also add longer metal beams to expand the engraving area, for example: 410mm*2000mm.

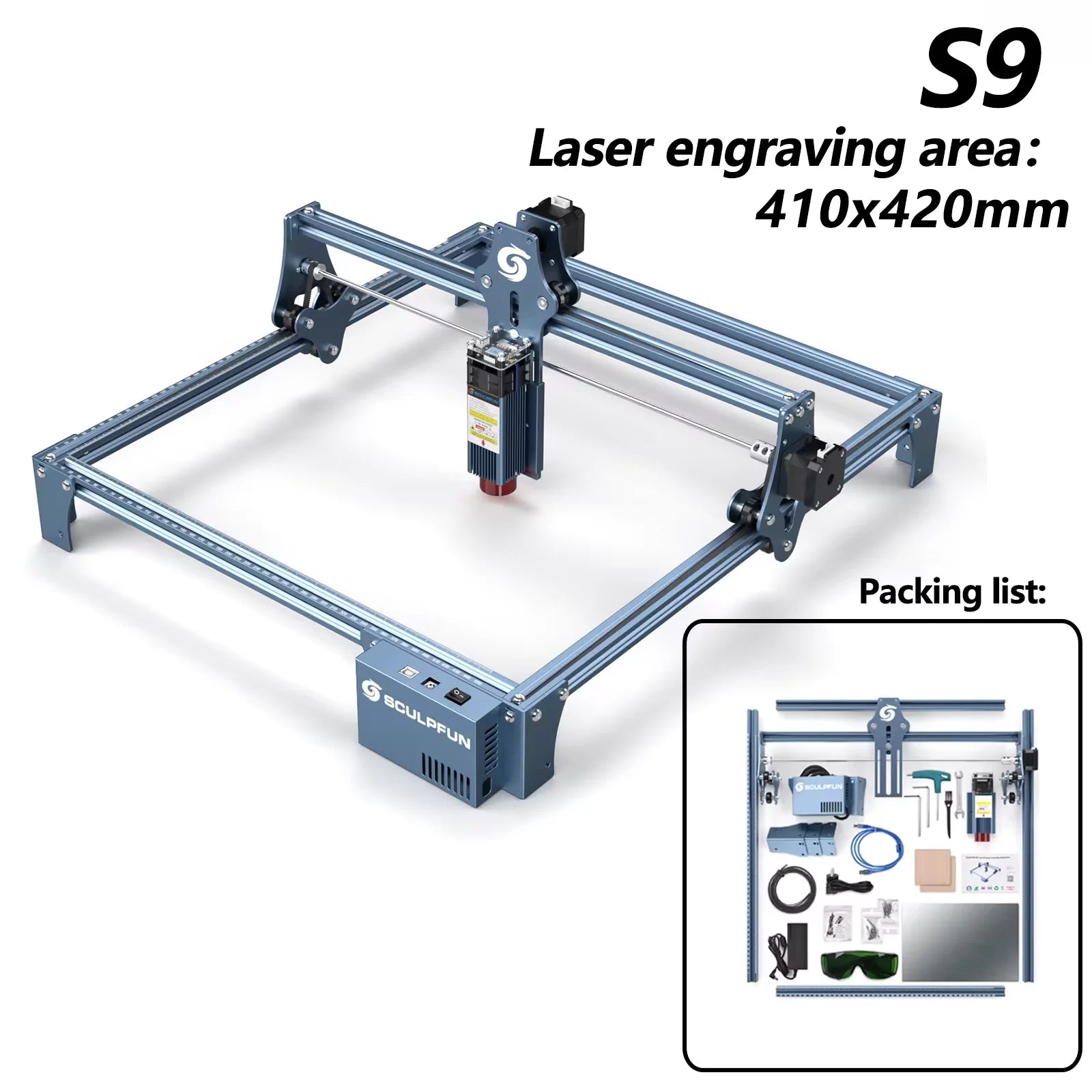

Machine Package List

1 x X-axis assembly

2 x X shaft

2 x Y shaft

1 x control box

1 x laser module

3 x support feet

1 x 12V 5A power adapter

1 x power cord

1 x USB cable

Note:

- Please read the Users Manual before use.

- Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!

- Do not engrave the mirror objects or metals with strong mirror reflectivity, which may cause injury to the operator or burn the laser.

The shelf life is 12 months from the date of purchase

1. Missing/damaged/defective parts

a. Within 7 days after the delivery date, we will replace any parts for free, including shipping

b. After 7 days from the delivery date, we will replace any parts free of charge. But customers need to pay for shipping

2. Customer damaged parts: The customer should pay for the cost of the parts and transportation costs

3. Lost, missing, damaged and defective parts by the courier company

1.Claims for lost or damaged goods must be reported to the carrier within the carrier’s claim window,

and the customer needs to notify us within 7 days after the delivery date

2. For any parts lost or damaged during transportation, the customer should take photos or videos and send the information to us

3. Once the carrier's dispute is resolved, please provide us with all communications with the carrier.

The customer is responsible for keeping us informed of all communications with the carrier in time

4. For missing parts, customers should contact customer service.

5. For damaged parts, customers should contact customer service and send photos or videos to us
